AutoCAD Design Projects

AutoCAD project file 01

Urban Design
Master Plan

A complete AutoCAD urban design workflow extracted from the first project file. It covers the site master plan, public facilities, residential clusters, row-house plans, sections, elevations and final documentation sheets.

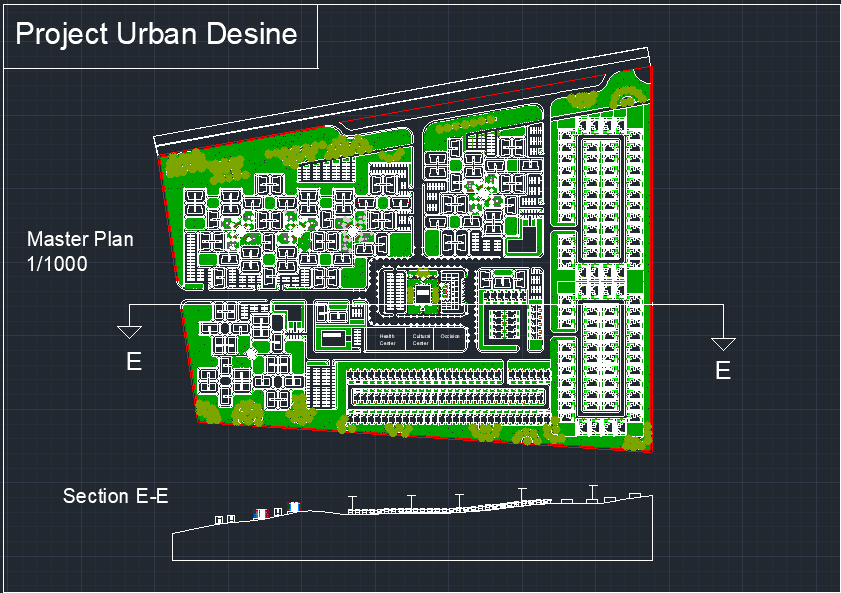

Overall master plan at 1/1000 scale with Section E-E reference.

Step 01

Master Plan & Site Organisation

The first drawing frames the full urban design master plan at 1/1000 scale, including the site boundary, residential clusters, road hierarchy, public facilities and Section E-E alignment.

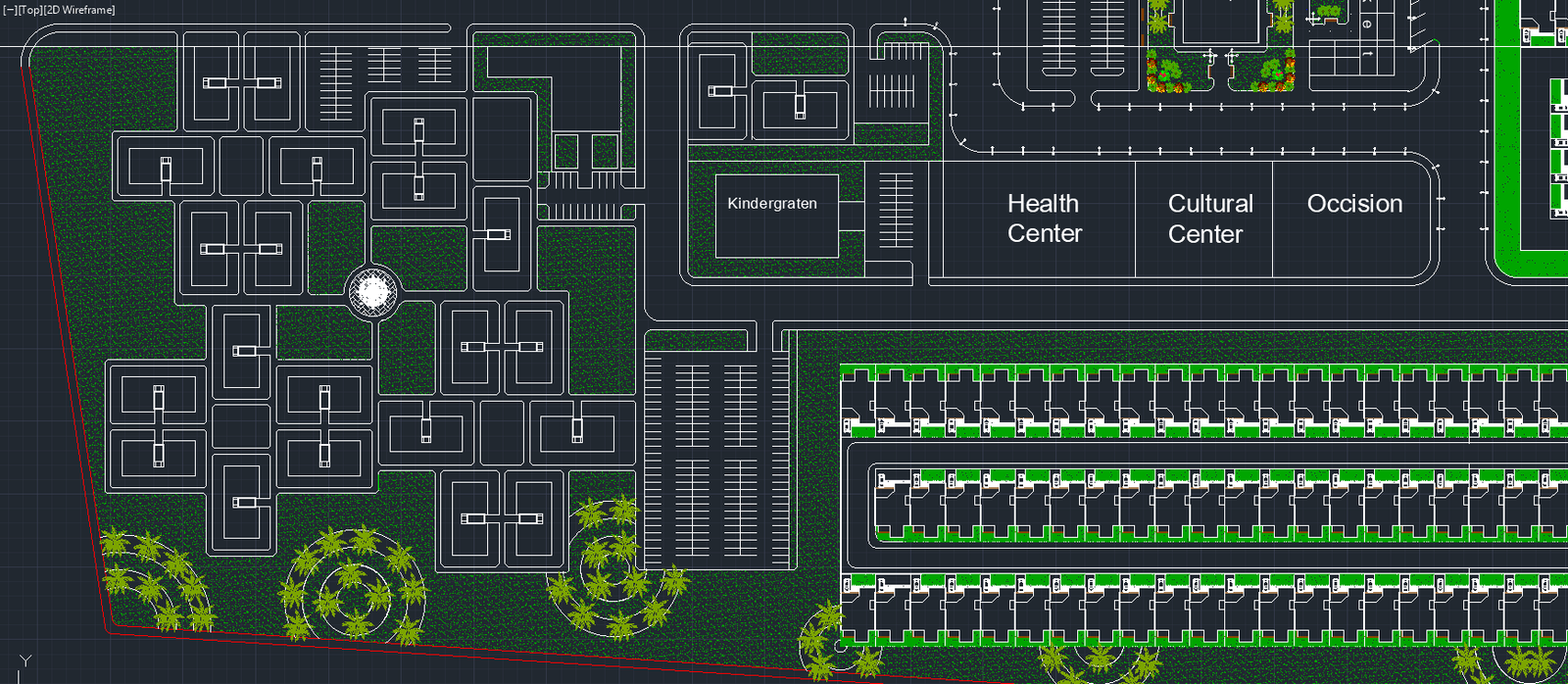

Urban zoning overview with residential clusters and public services.

Step 02

Zoning and Public Facilities Core

The plan is then read through its functional zones: residential blocks, landscape buffers, parking areas, kindergarten, health center, cultural center and mosque/market core.

Step 03

Central Civic Area Planning

The civic node combines mosque access, market frontage, circulation loops, parking and landscaped pedestrian edges into one coordinated AutoCAD layout.

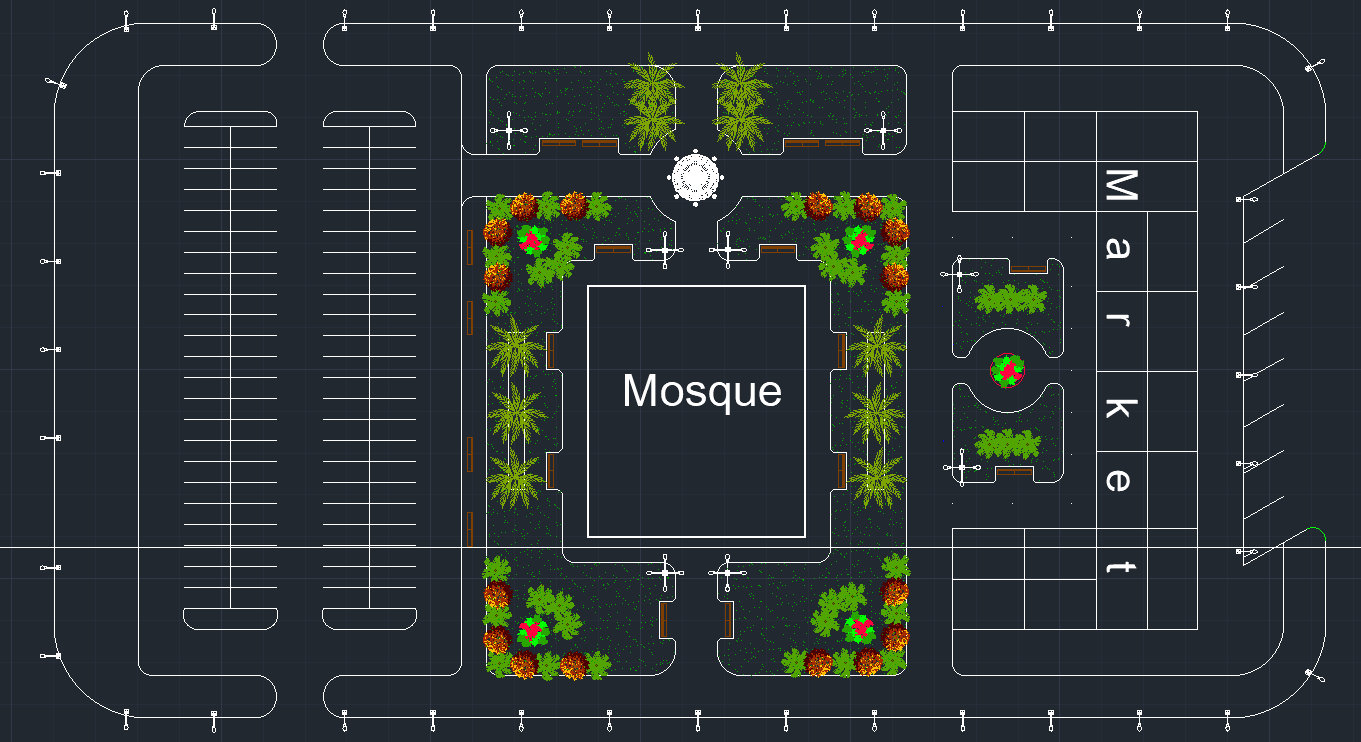

Central mosque, market and parking planning core.

Step 04

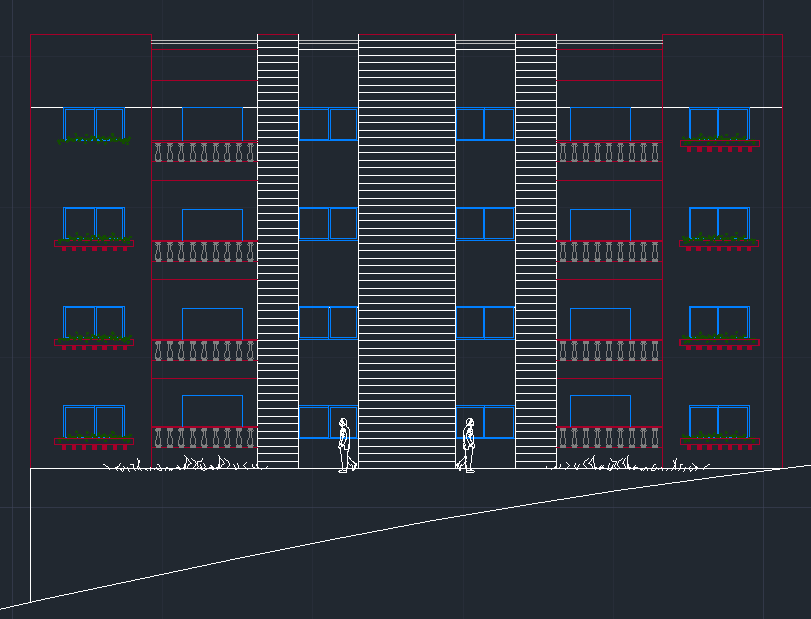

Residential Elevation Development

Building elevations translate the planning grid into facade language, stairs, windows, balconies and ground-slope coordination for the residential blocks.

Step 05

Block-Level Planning at 1/200

Detailed block drawings refine the central area and within-block layouts, showing how local access, landscape pockets and building footprints are coordinated.

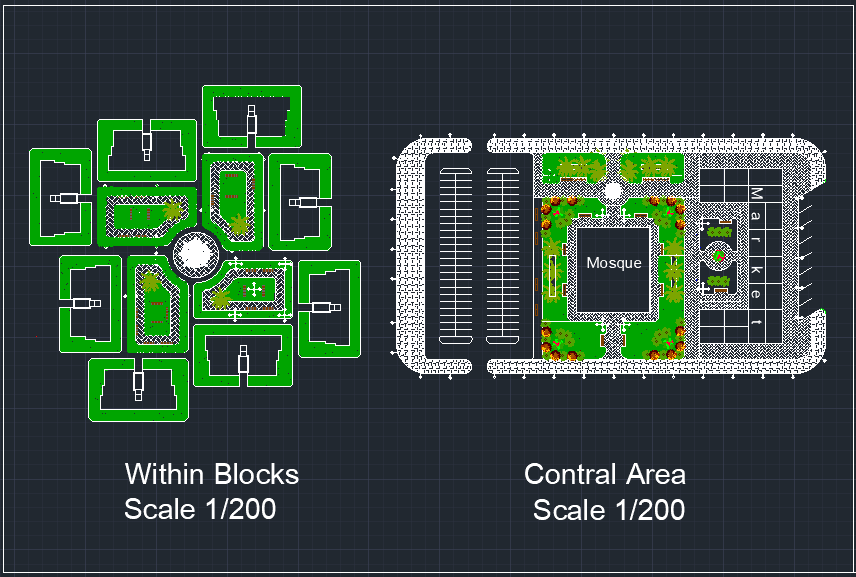

Within-block and central area plans at 1/200 scale.

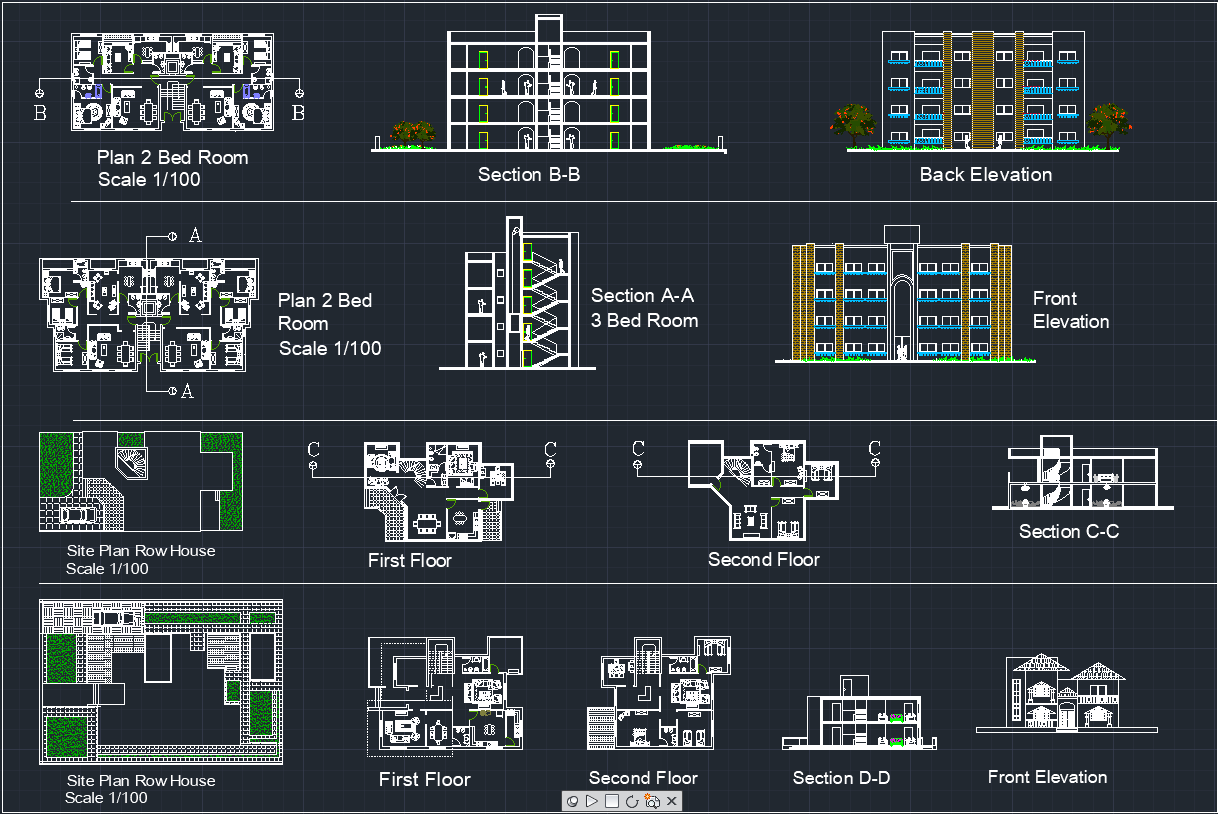

Drawing sheet with plans, sections and elevations.

Step 06

Architectural Drawing Sheet

A consolidated sheet brings together floor plans, sections and elevations to communicate the residential typologies and drawing package hierarchy.

Step 07

Row House Site and Floor Plans

The row-house documentation expands into detailed site plans and floor plans, linking outdoor access, parking, garden areas and internal arrangement.

Step 08

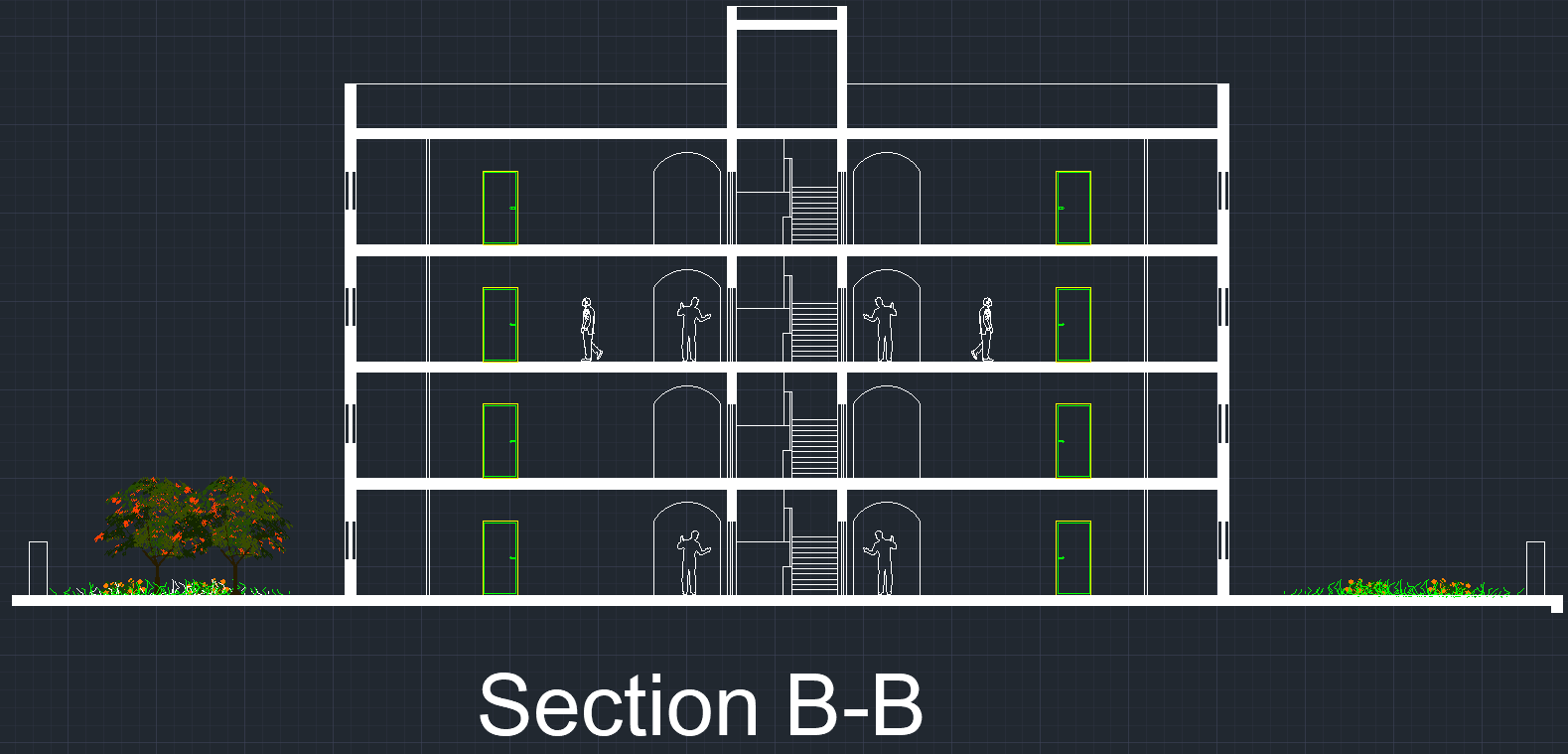

Sections and Final Elevations

Sections and elevations complete the documentation workflow by clarifying levels, stairs, facade rhythm and vertical relationships across the housing blocks.

Full Drawing Gallery

Urban Design Gallery

Supporting views are kept here so the full drawing package remains available without crowding the main workflow.

Gallery View 03

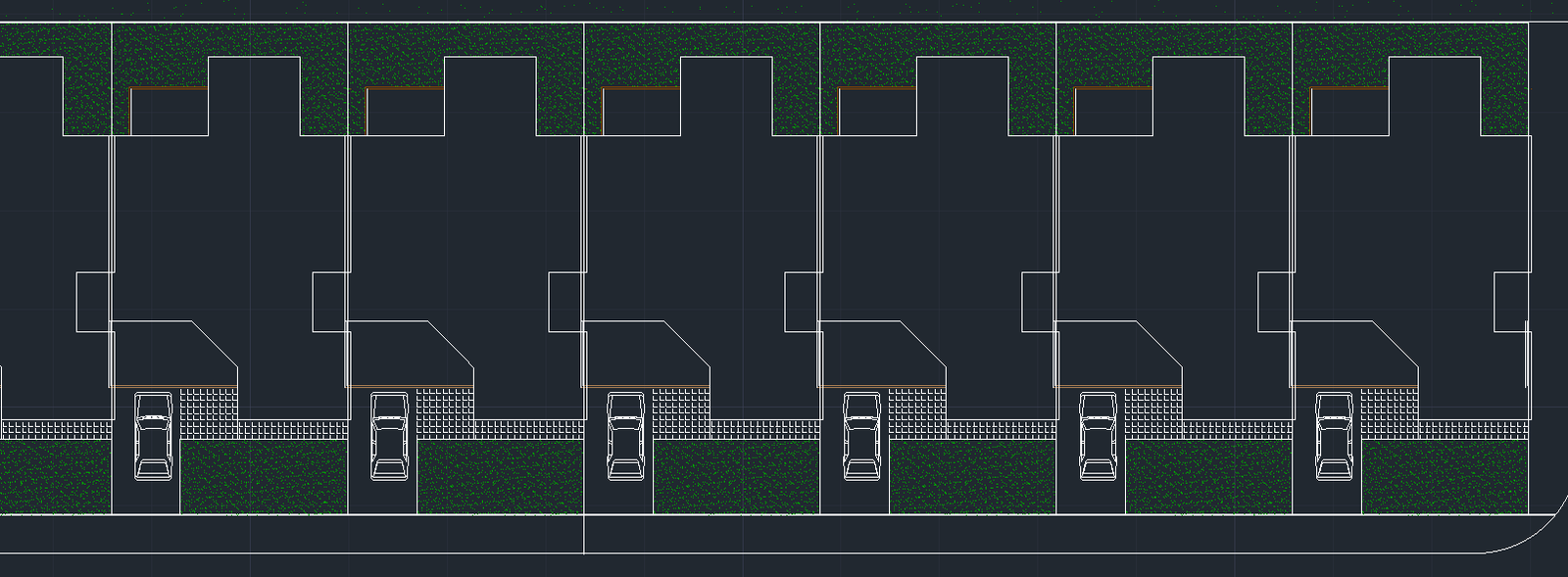

Residential row-house plot arrangement.

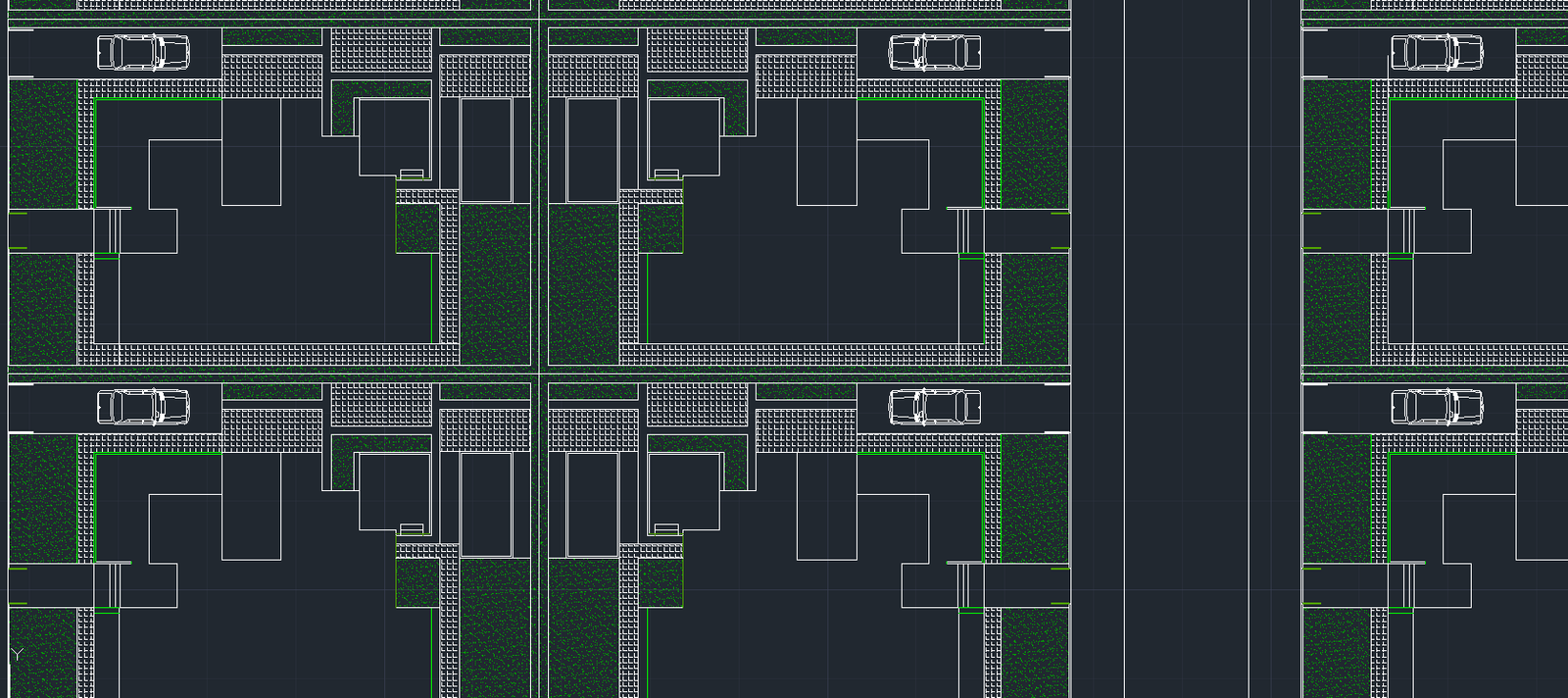

Gallery View 04

Neighbourhood housing layout and road access.

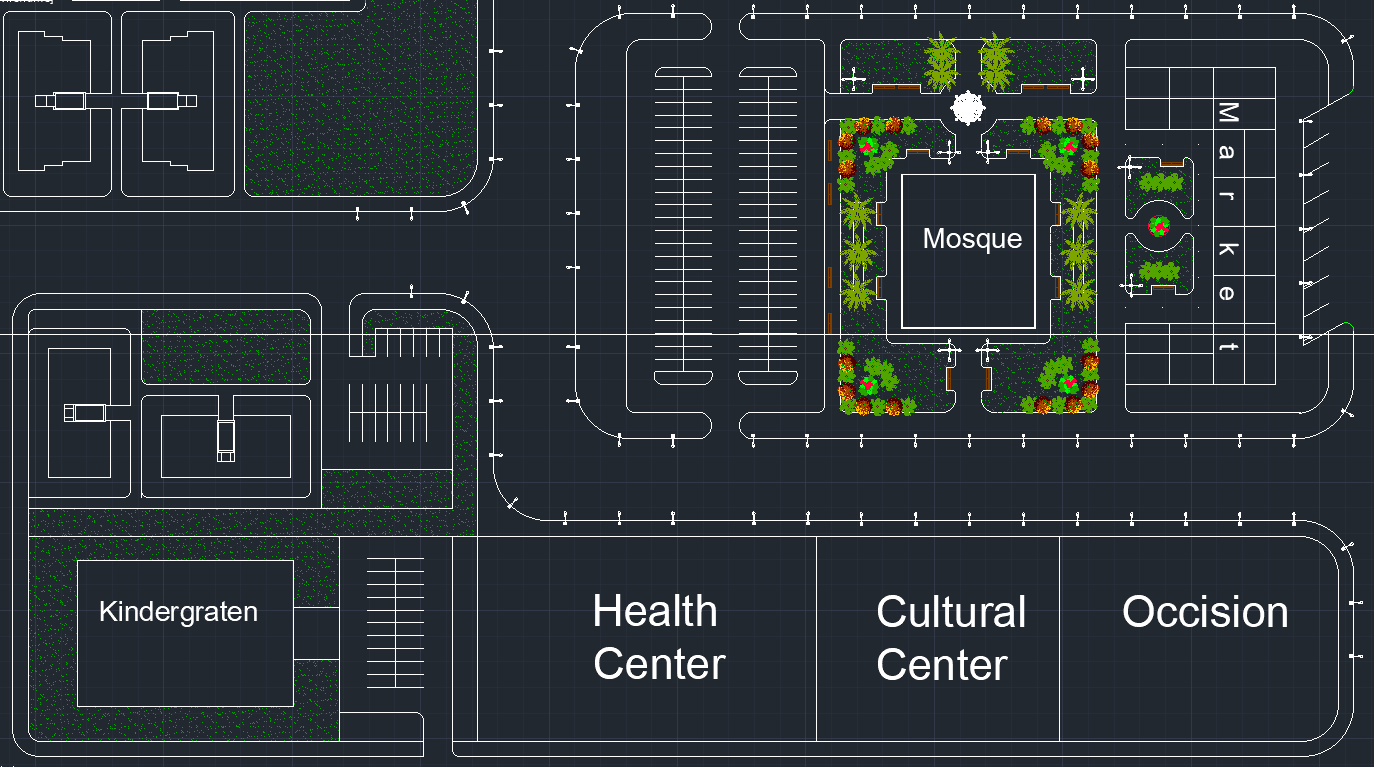

Gallery View 06

Public facilities zone with kindergarten, health center and cultural center.

Gallery View 07

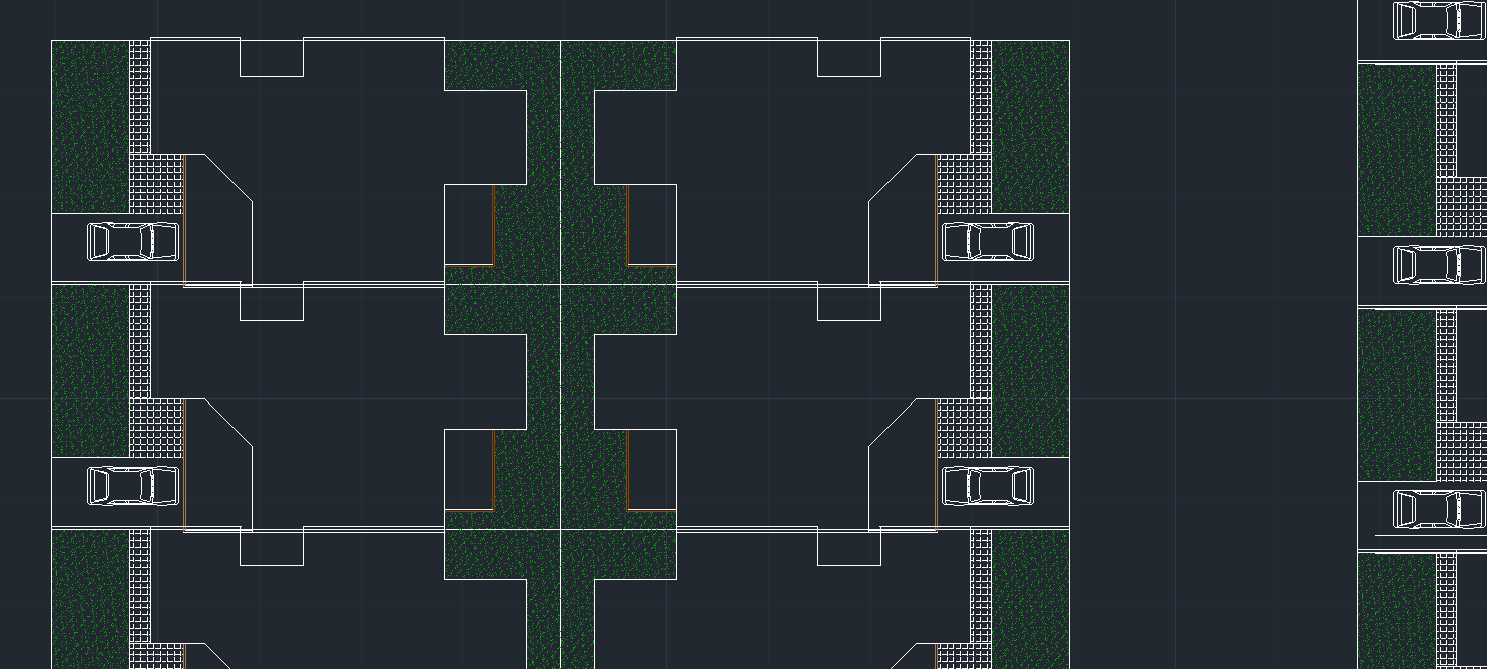

Residential blocks and vehicular access detail.

Gallery View 08

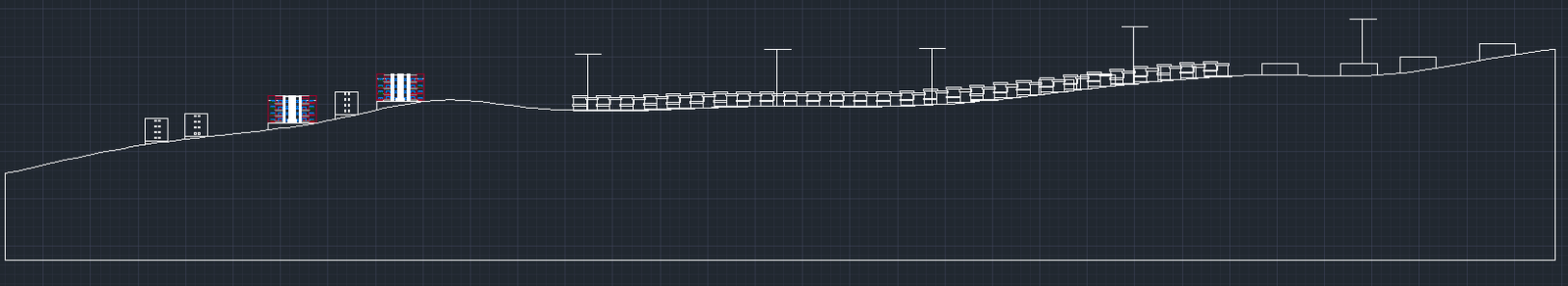

Section E-E terrain and building profile.

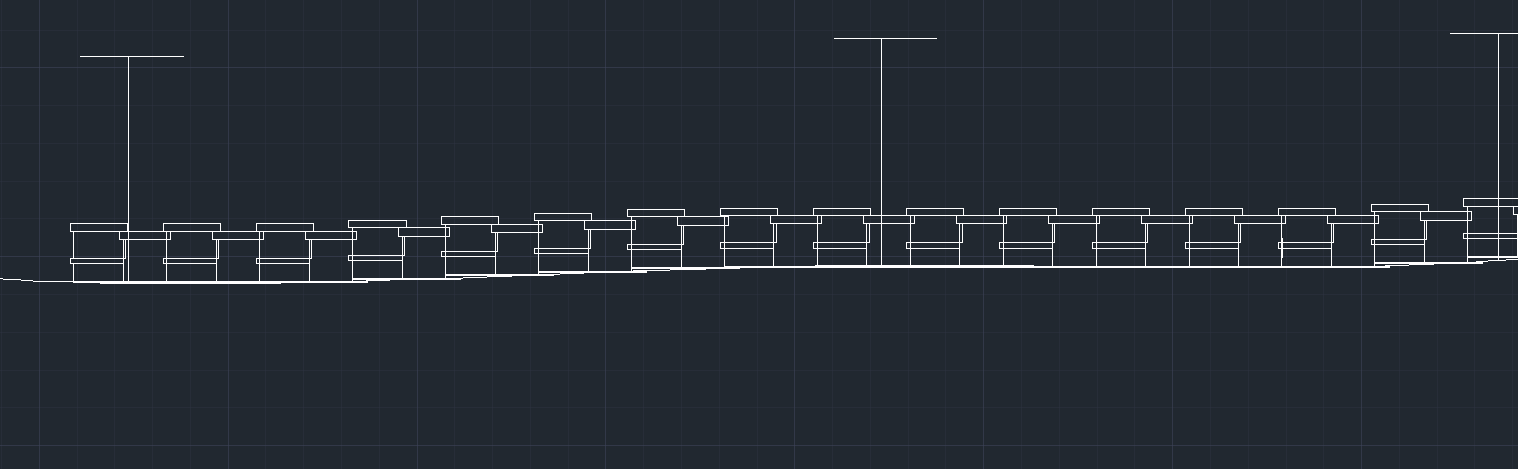

Gallery View 09

Longitudinal housing section drawing.

Gallery View 11

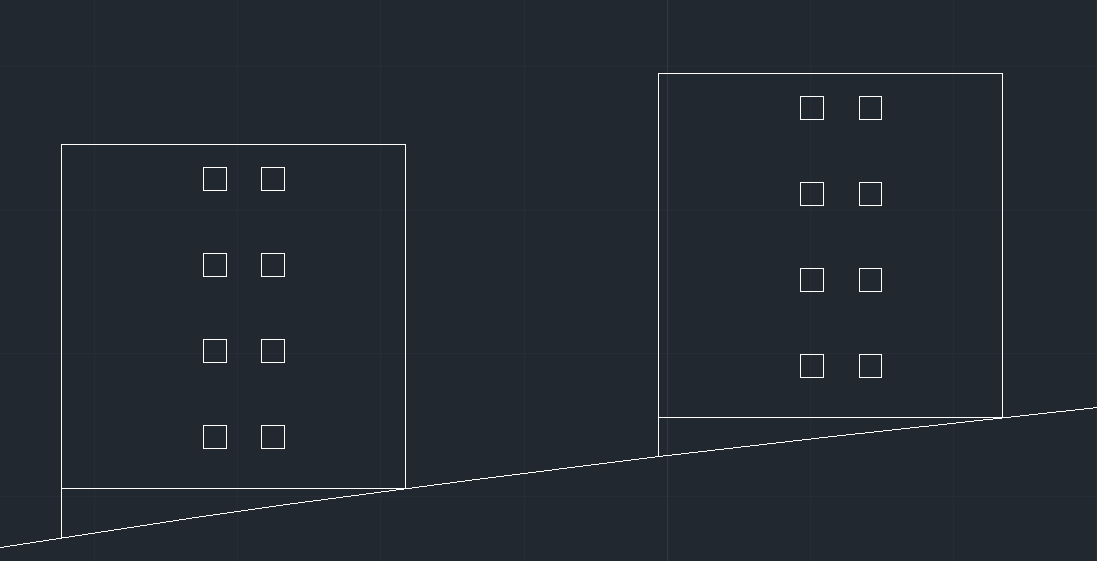

Building massing elevation study.

Gallery View 13

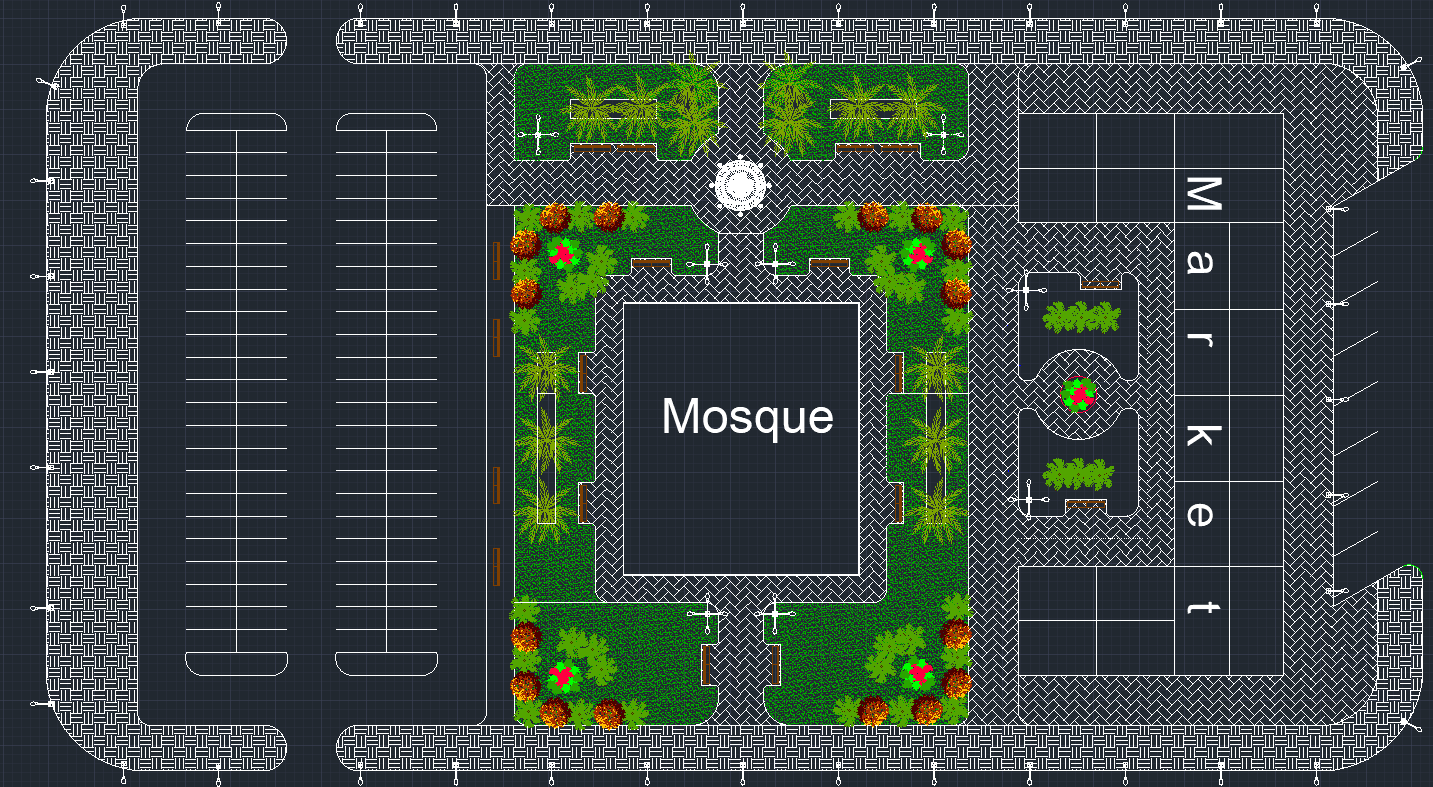

Mosque and market planning detail.

Gallery View 14

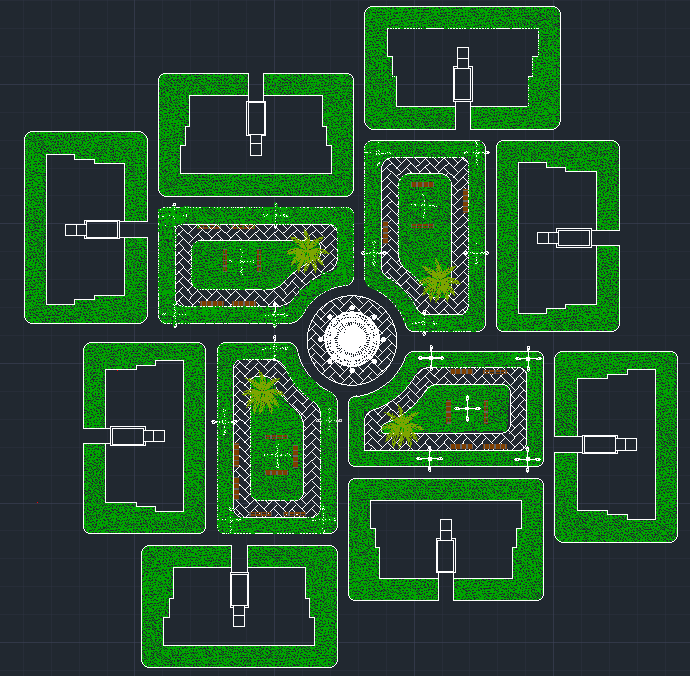

Within-block landscape and access design.

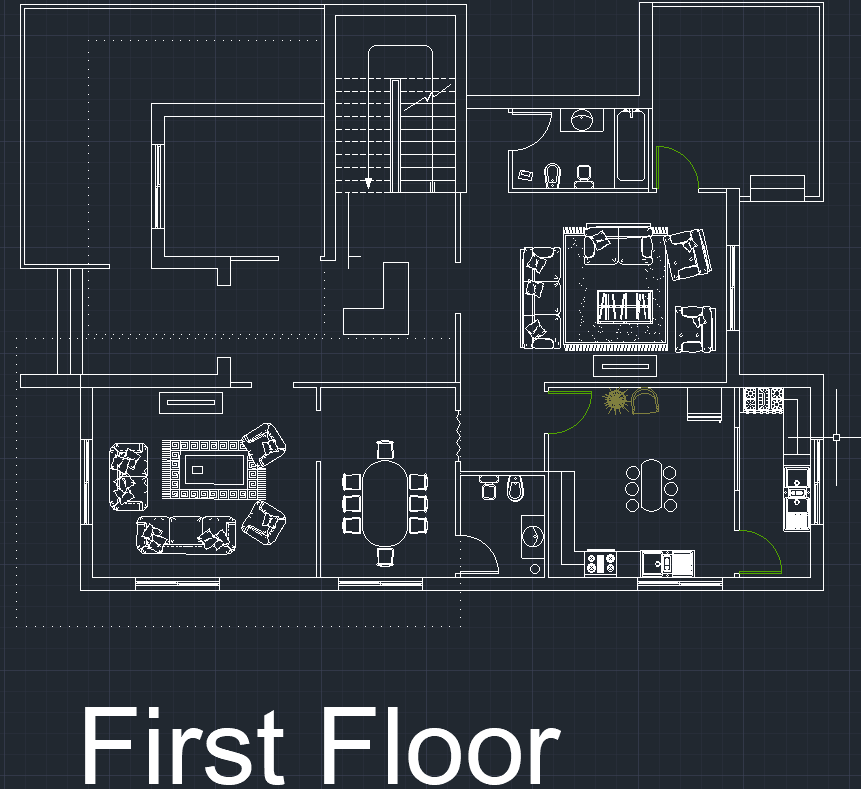

Gallery View 17

First-floor architectural layout.

Gallery View 18

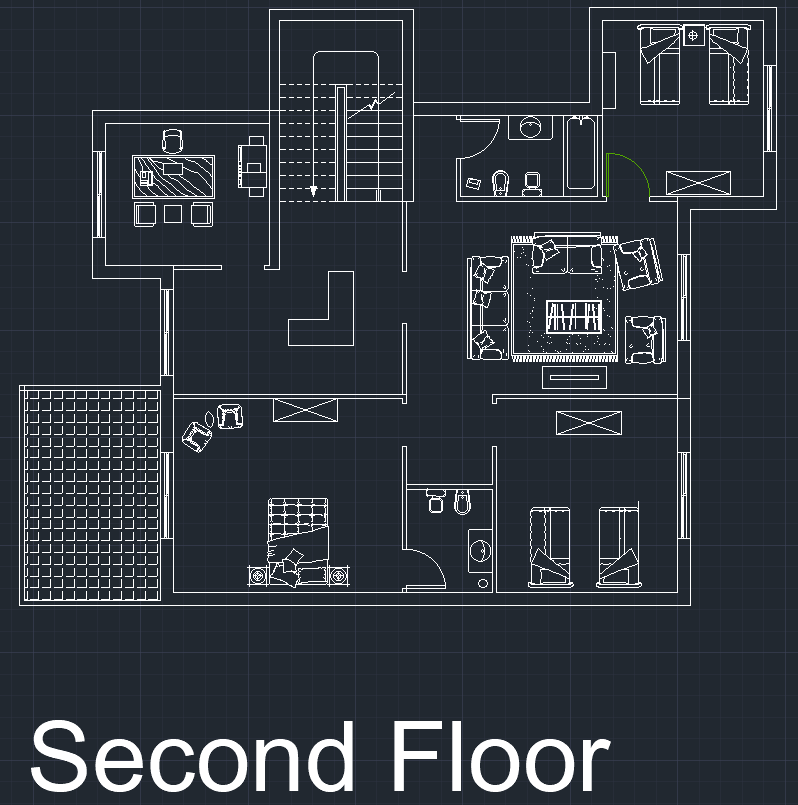

Second-floor architectural layout.

Gallery View 19

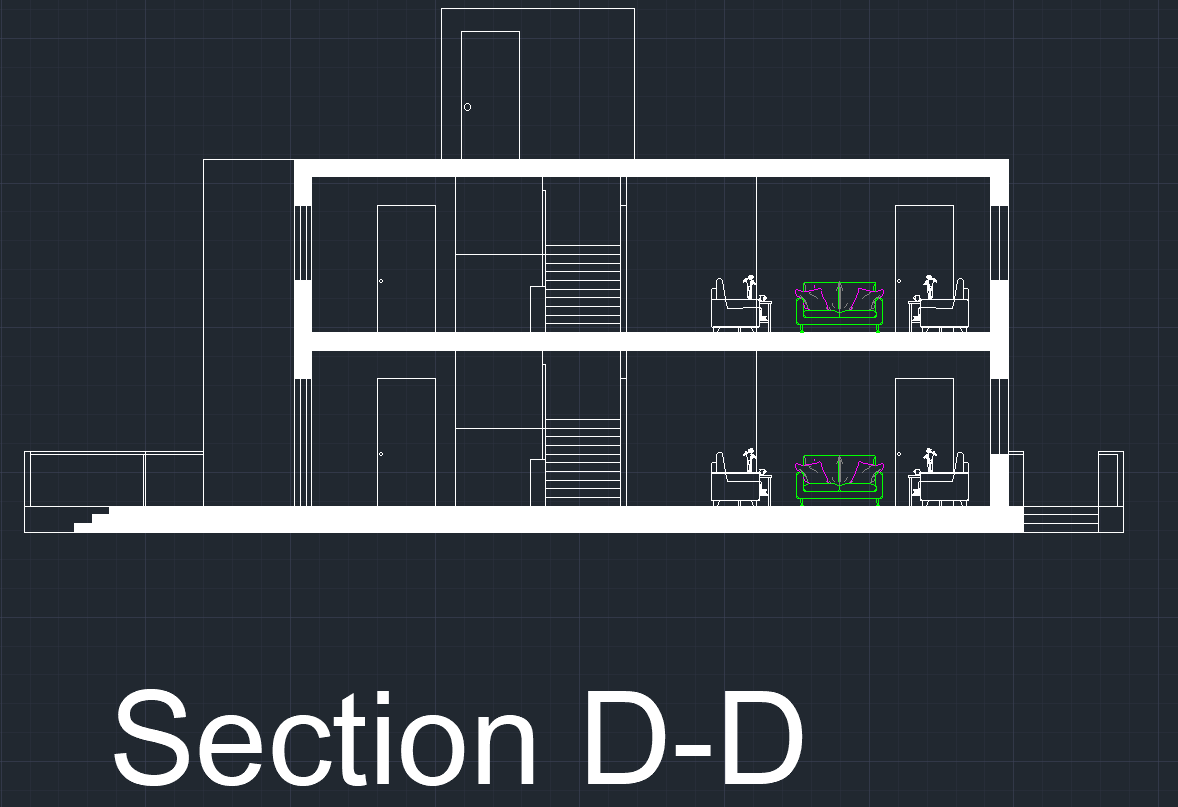

Section D-D through residential building.

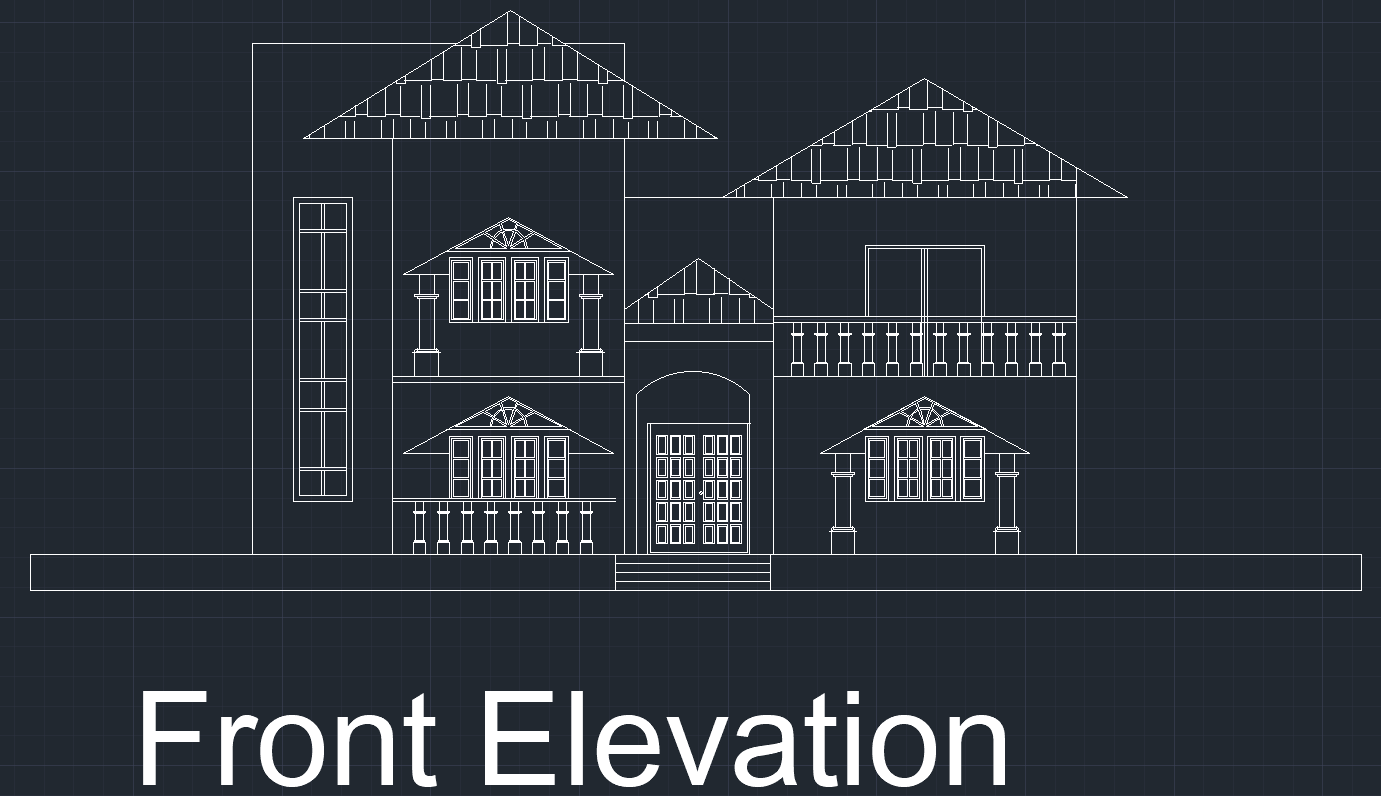

Gallery View 20

Front elevation facade option.

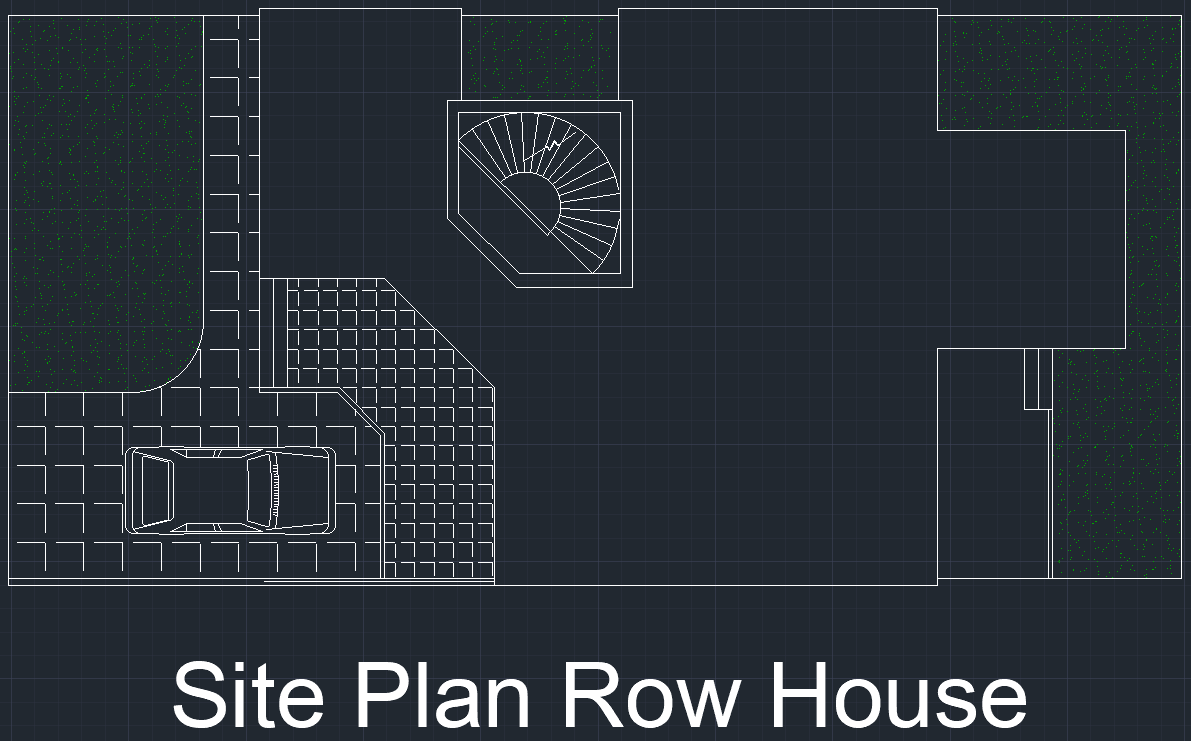

Gallery View 21

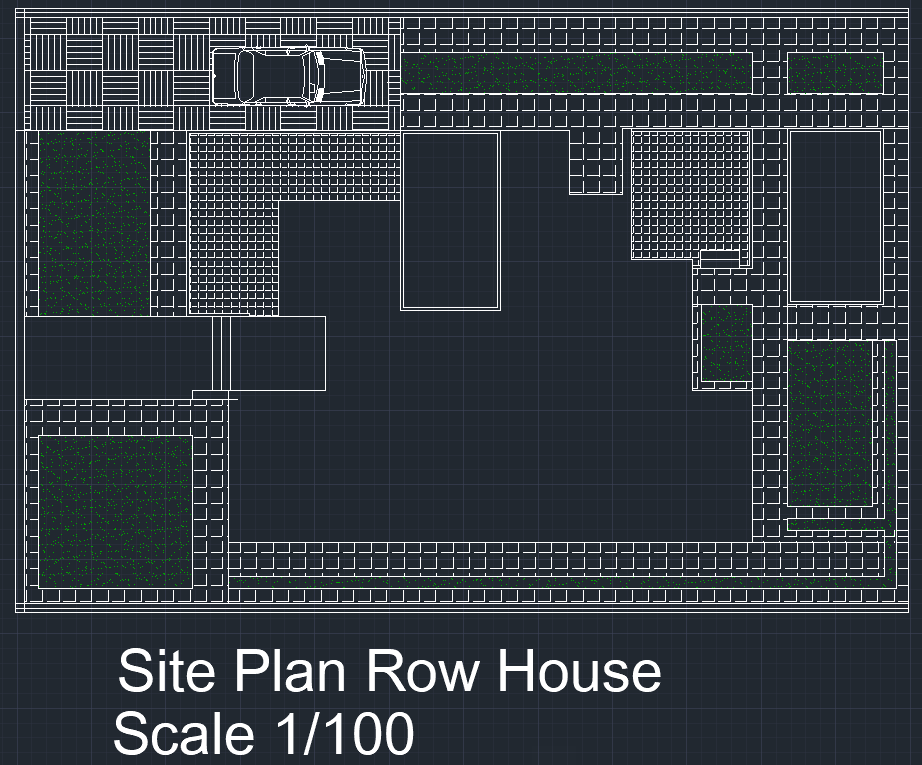

Row-house site plan detail.

Gallery View 22

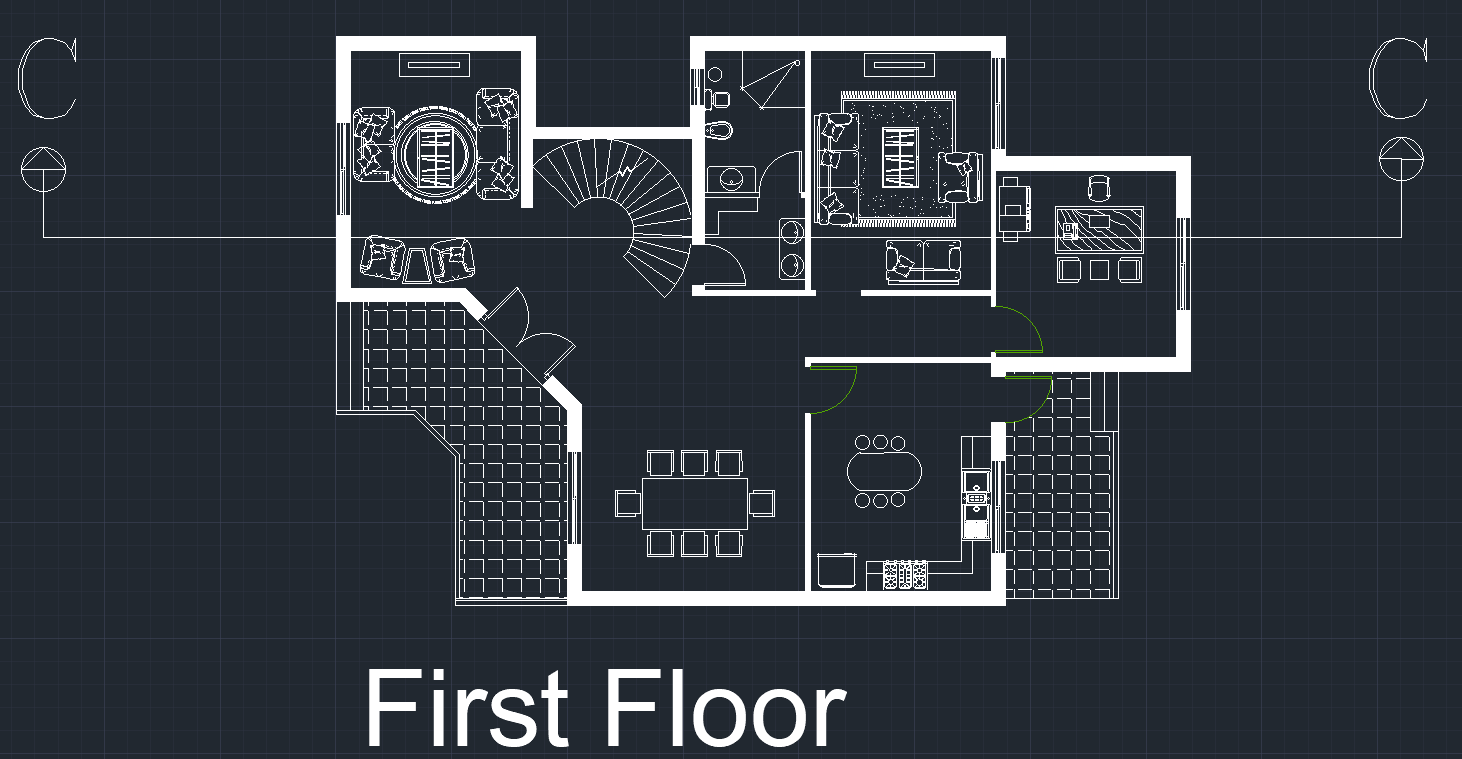

First-floor plan detail.

Gallery View 23

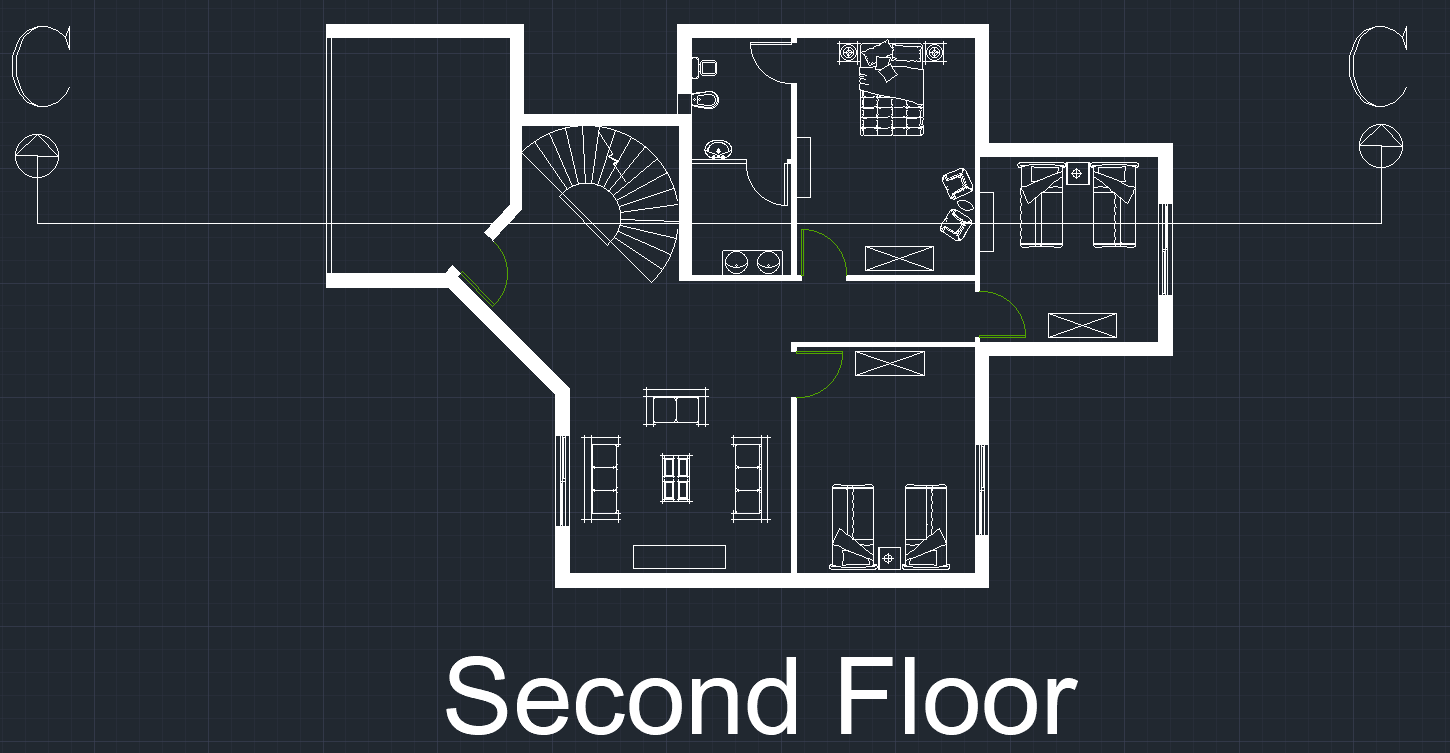

Second-floor plan detail.

Gallery View 24

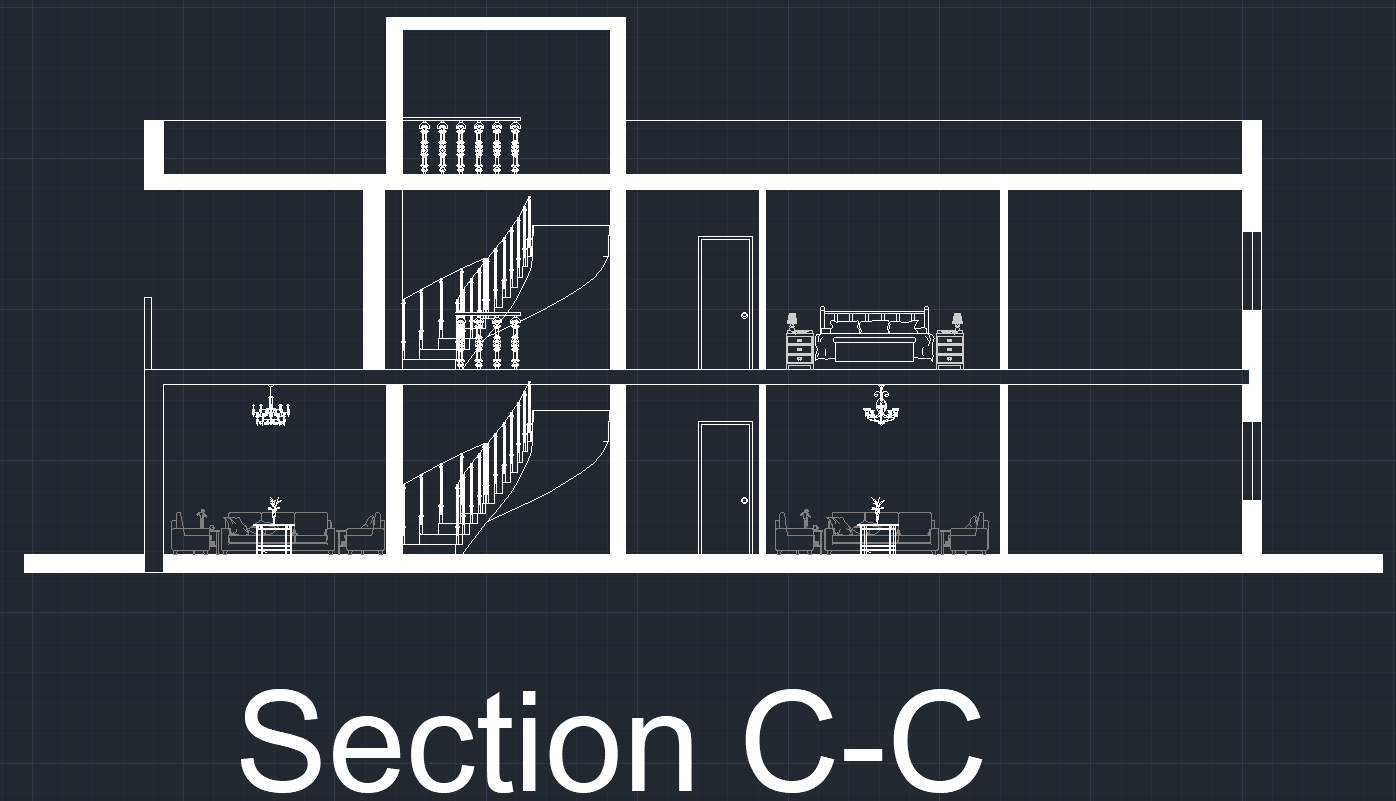

Section C-C interior and stair detail.

Gallery View 25

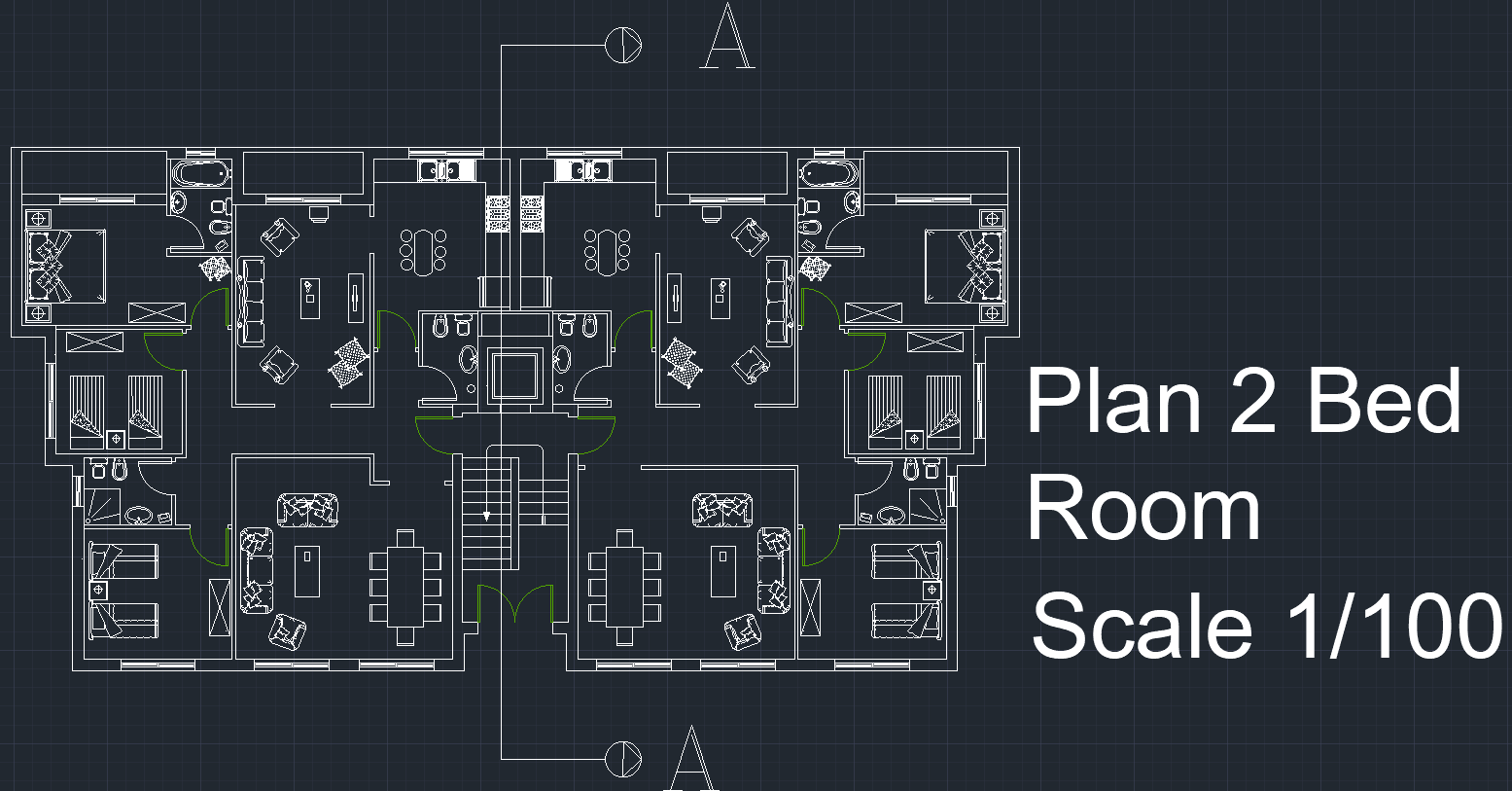

Two-bedroom plan at 1/100 scale.

Gallery View 26

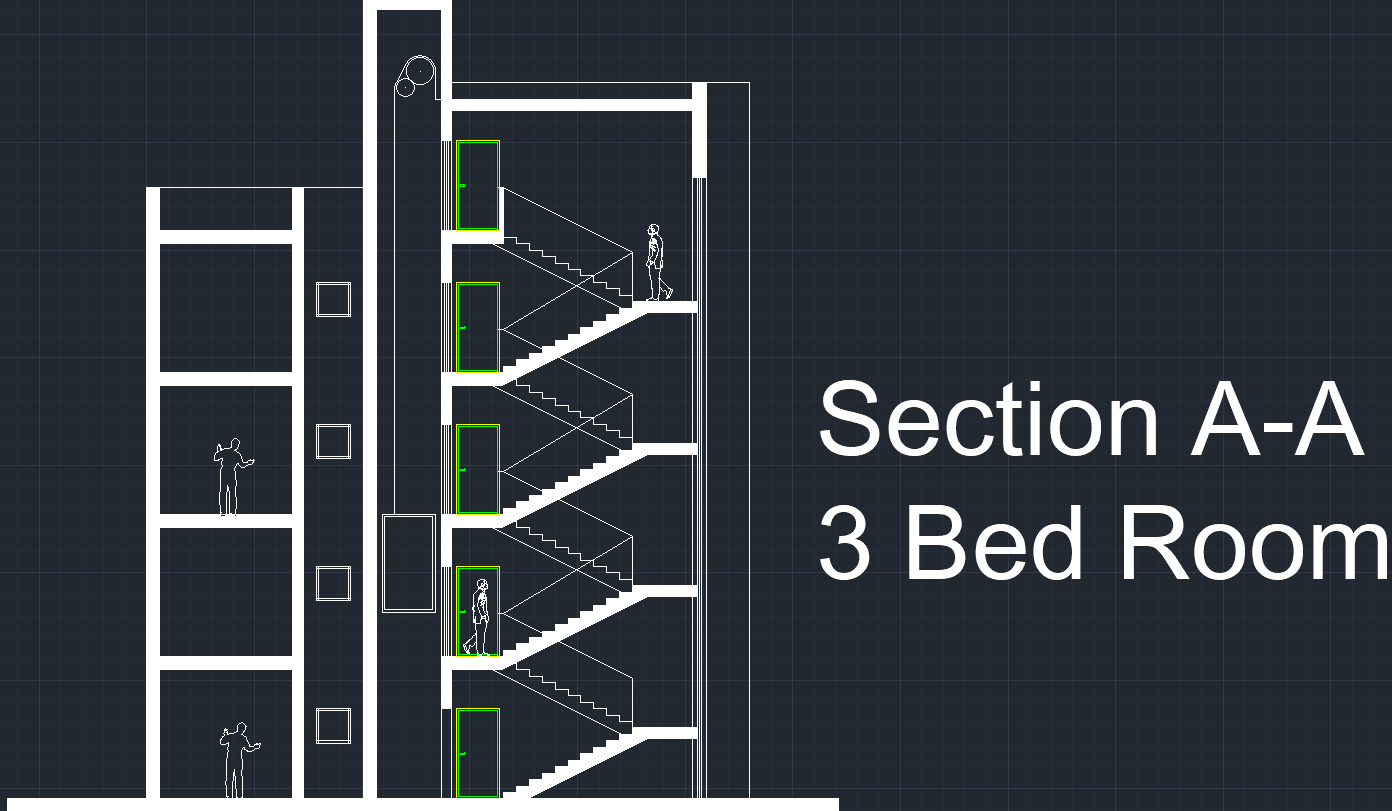

Section A-A for three-bedroom room block.

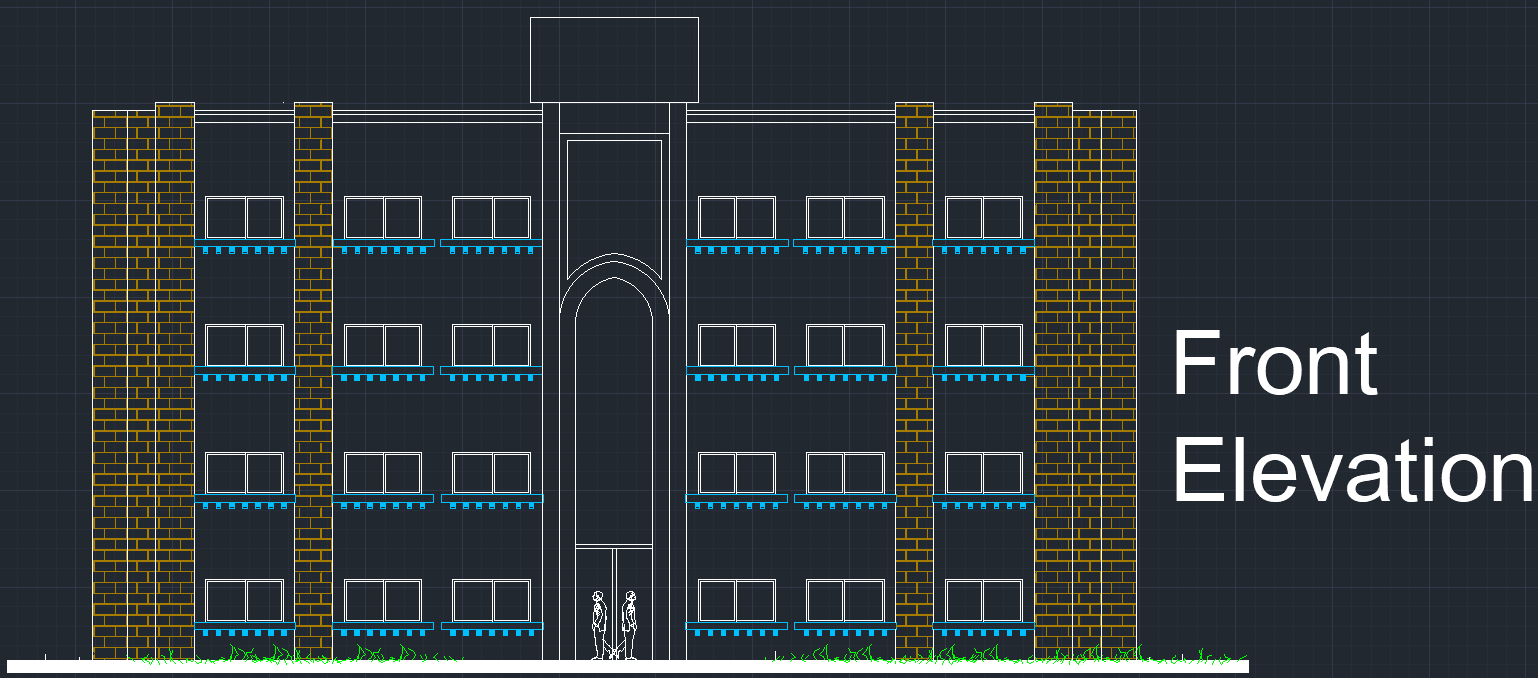

Gallery View 27

Front elevation colored facade drawing.

Gallery View 28

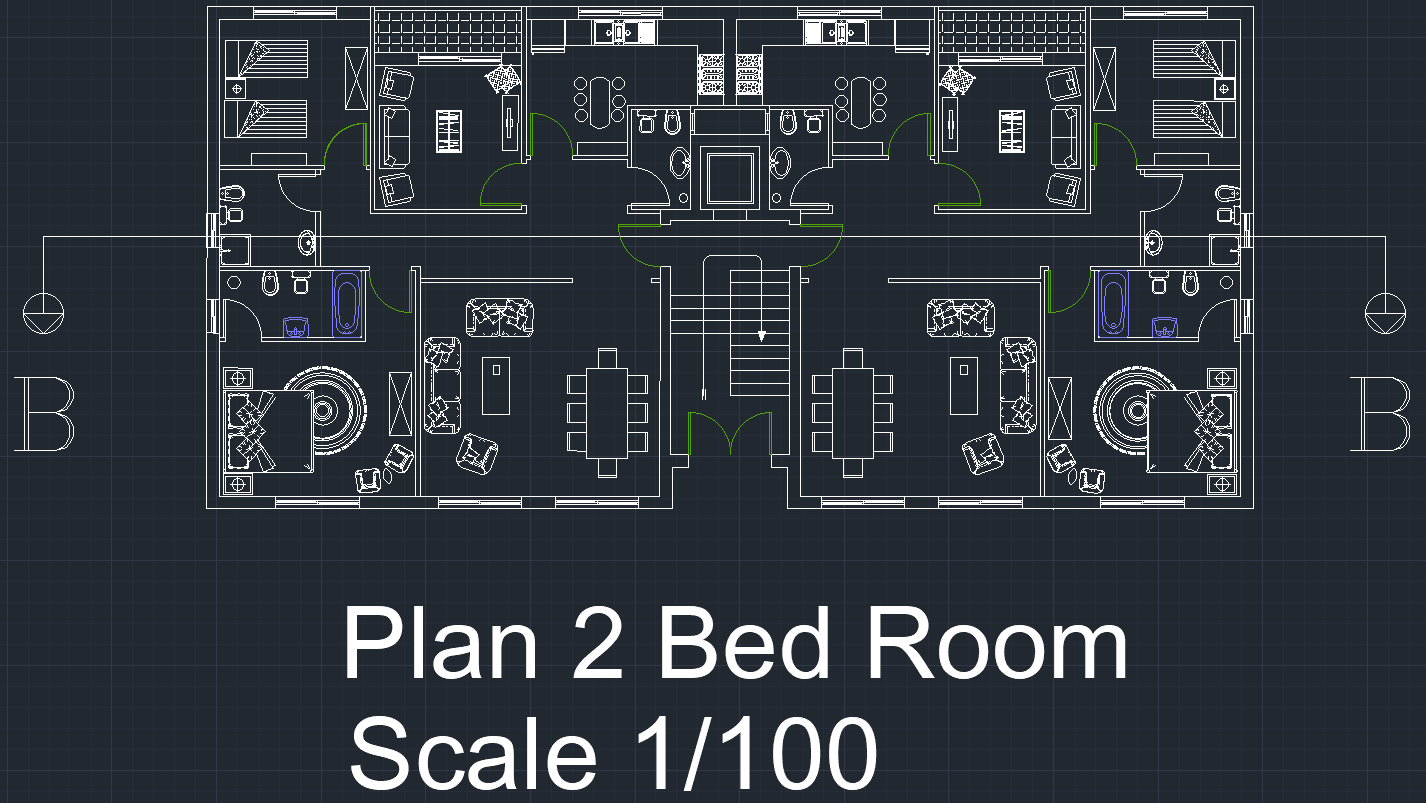

Two-bedroom plan detail with section marker.

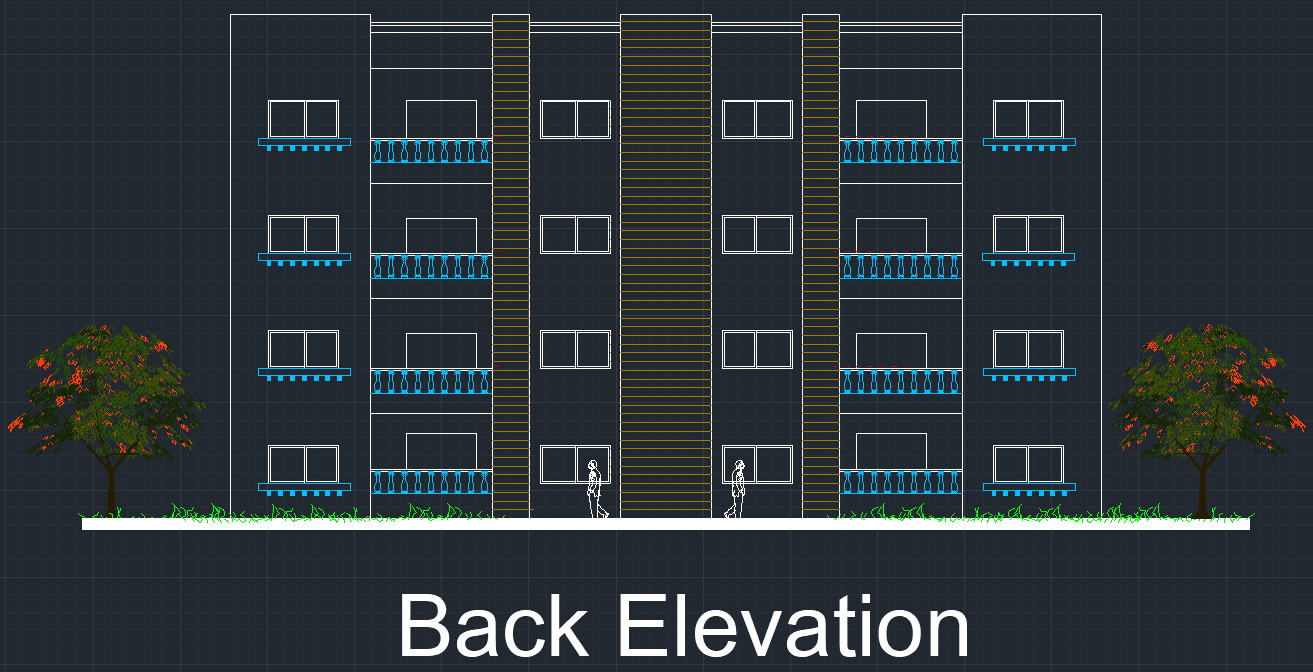

Gallery View 30

Back elevation colored facade drawing.

AutoCAD project file 02

Landscape & Public
Facilities

The second project file is organised as a separate AutoCAD project section focused on landscape planning, public facilities, W.C/service plans, elevation strips, planting layouts and outdoor activity zones.

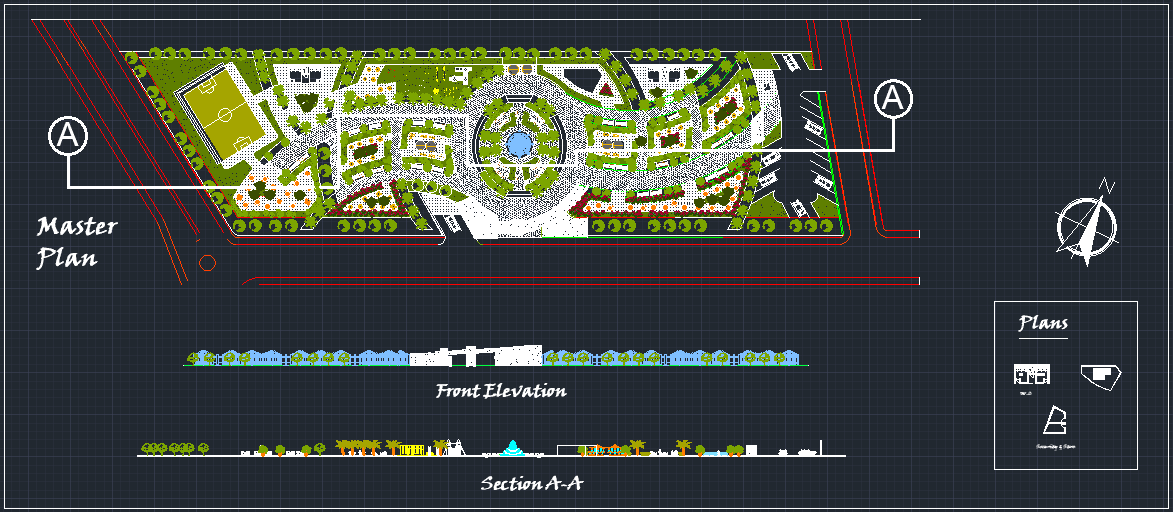

Landscape-oriented master plan with front elevation and Section A-A.

Step 01

Landscape Master Plan and Site Section

The second AutoCAD package focuses on a landscape/public-facility master plan, combining a full site layout with front elevation, Section A-A and orientation information.

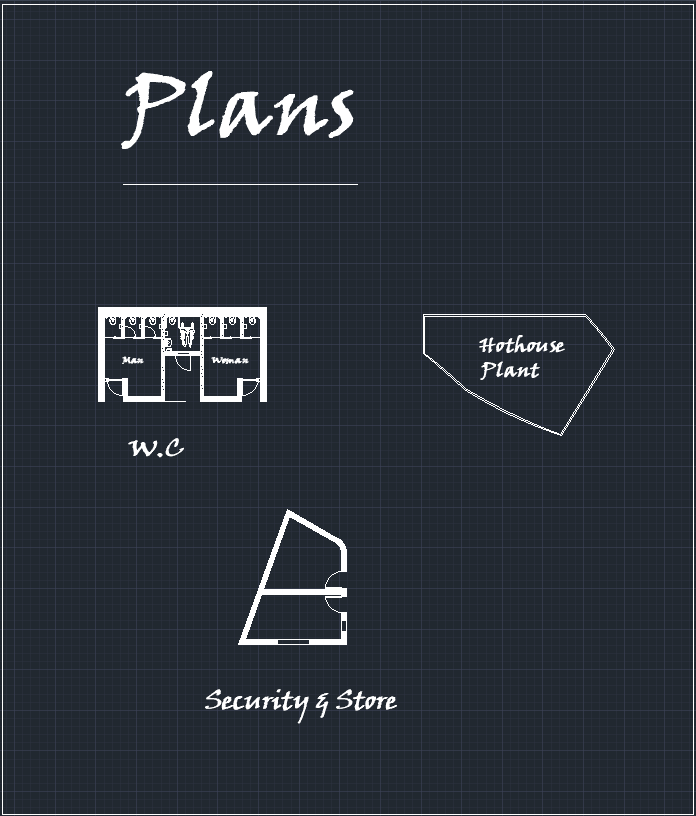

General plan sheet for W.C, hothouse plant, security and store.

Step 02

Service Plans and Support Buildings

Support functions such as W.C, hothouse plant, security and store are presented as small AutoCAD plan components within the overall public-space package.

Step 03

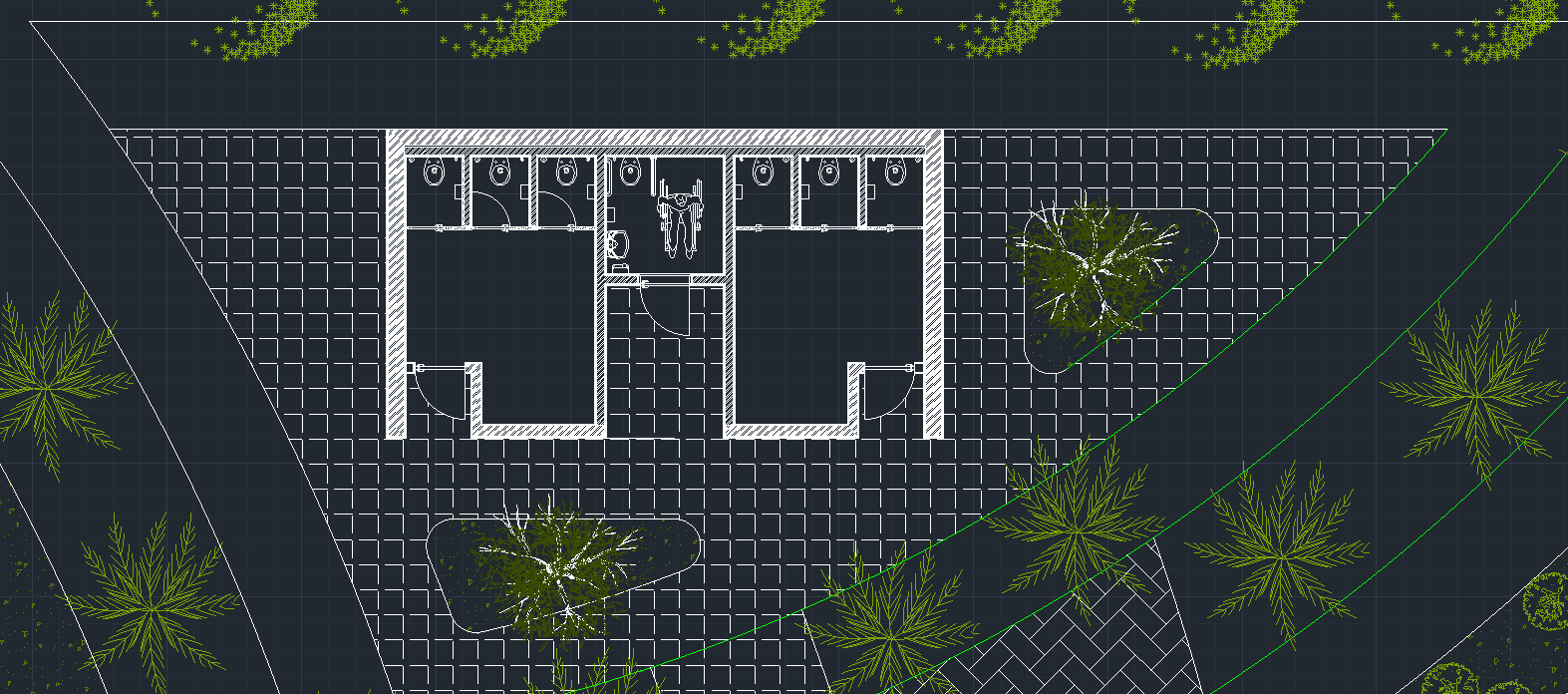

W.C Planning and Internal Layout

The W.C drawing clarifies male and female zones, fixtures, circulation and wall layout using a direct 2D AutoCAD planning approach.

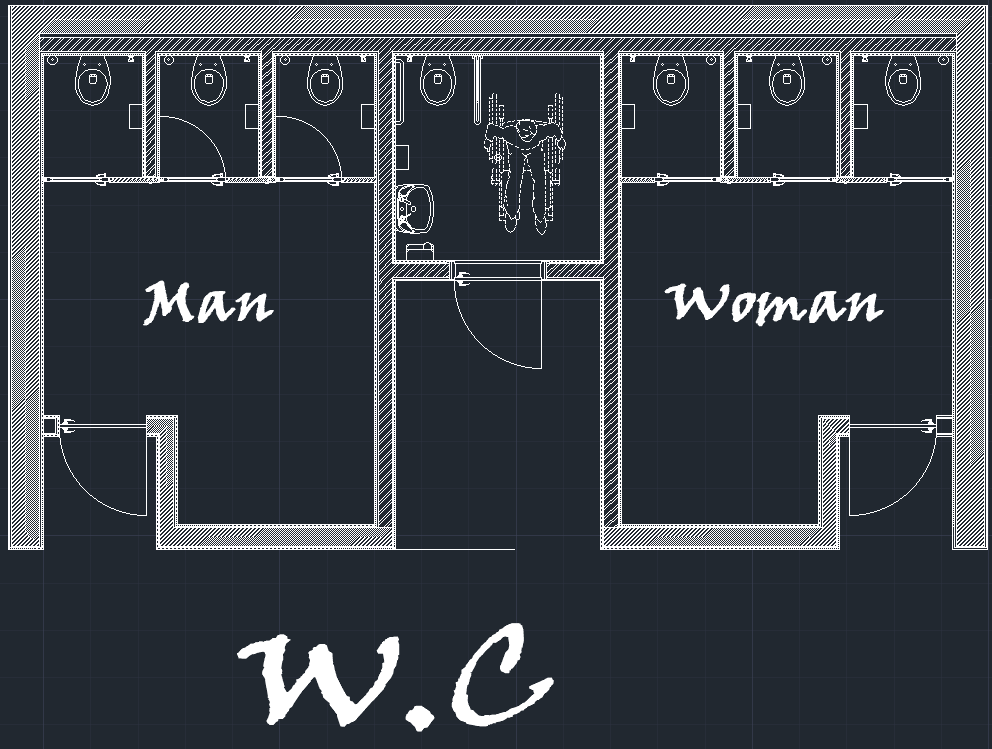

W.C plan with male and female service zones.

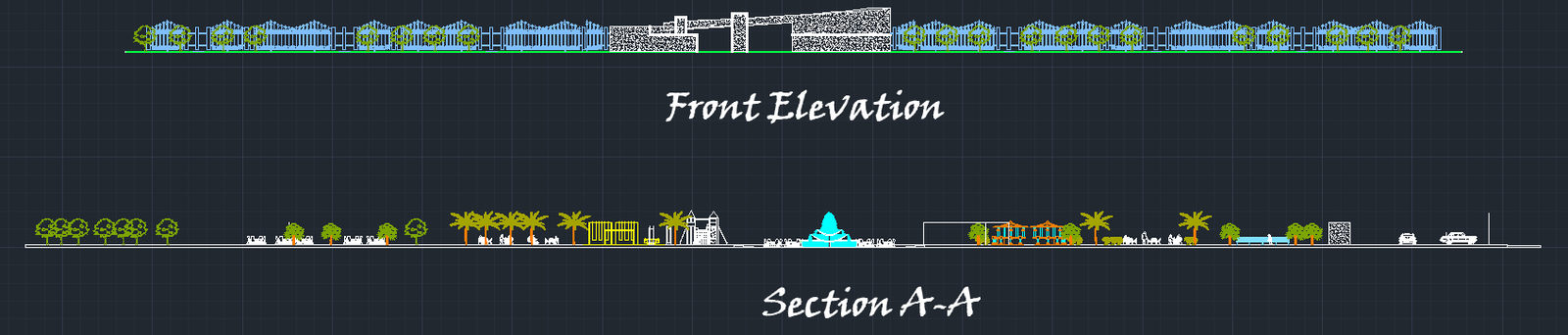

Front elevation and Section A-A overview.

Step 04

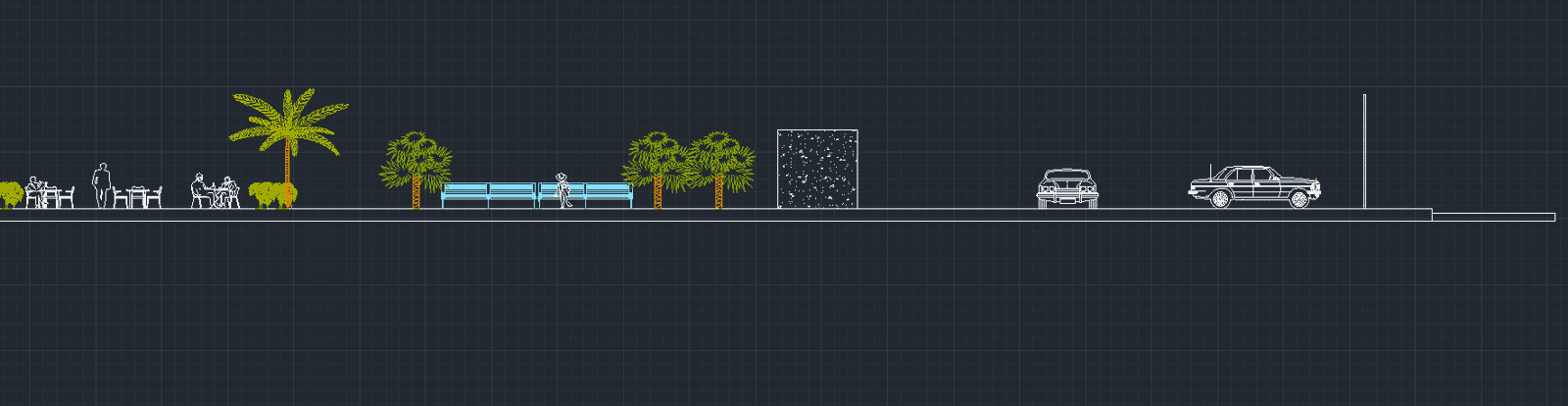

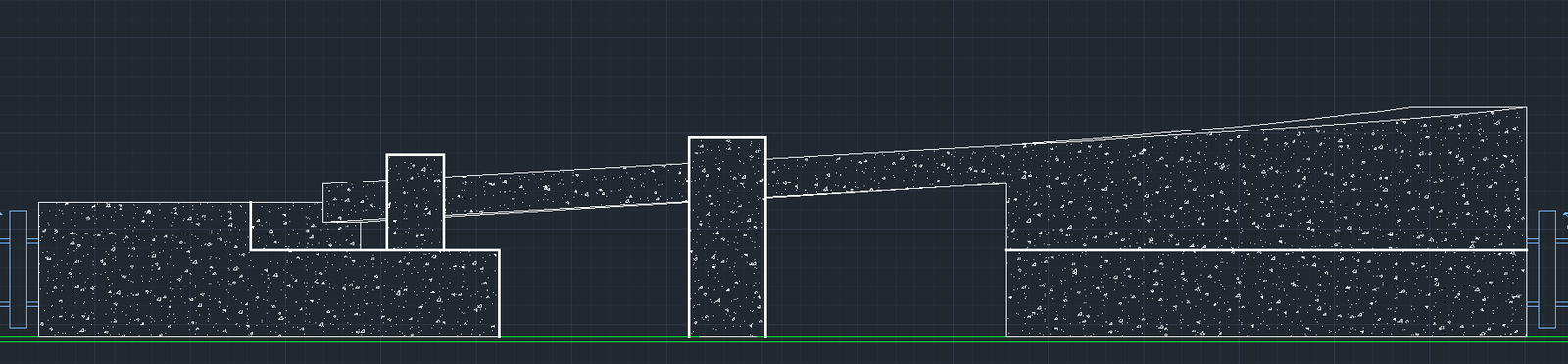

Elevation and Section Strip

Front elevation and Section A-A illustrate how landscape elements, people, planting, road edges and built elements are aligned across the site.

Step 05

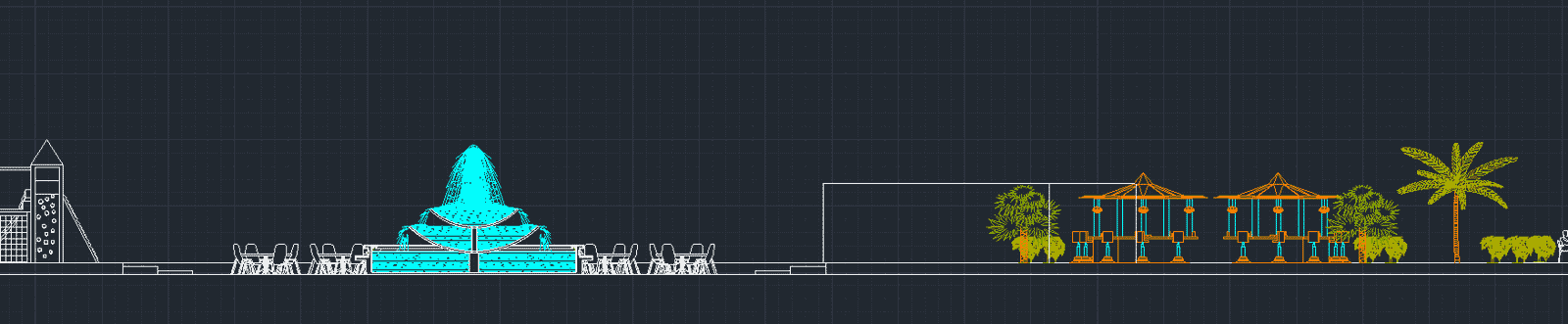

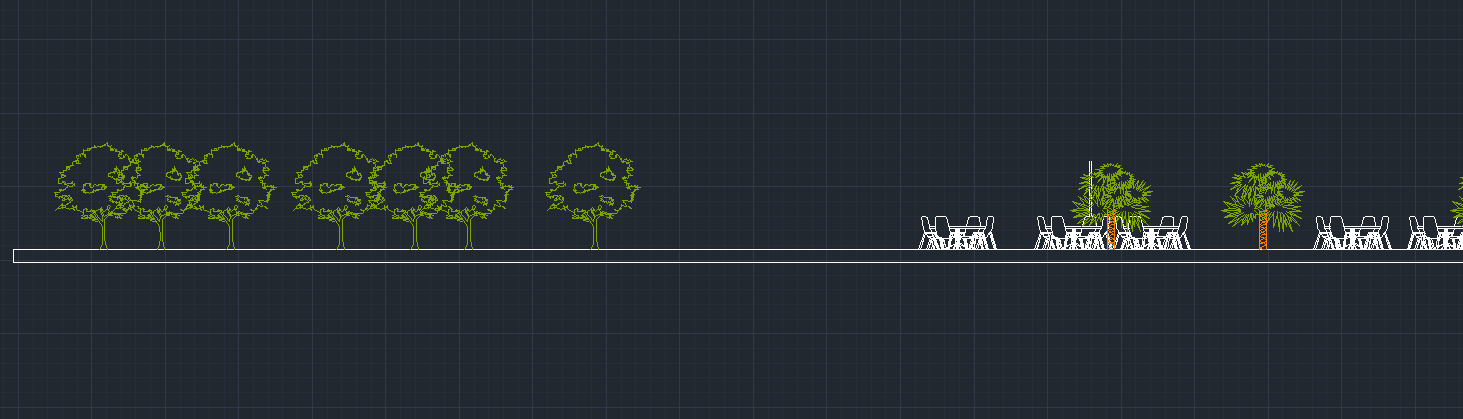

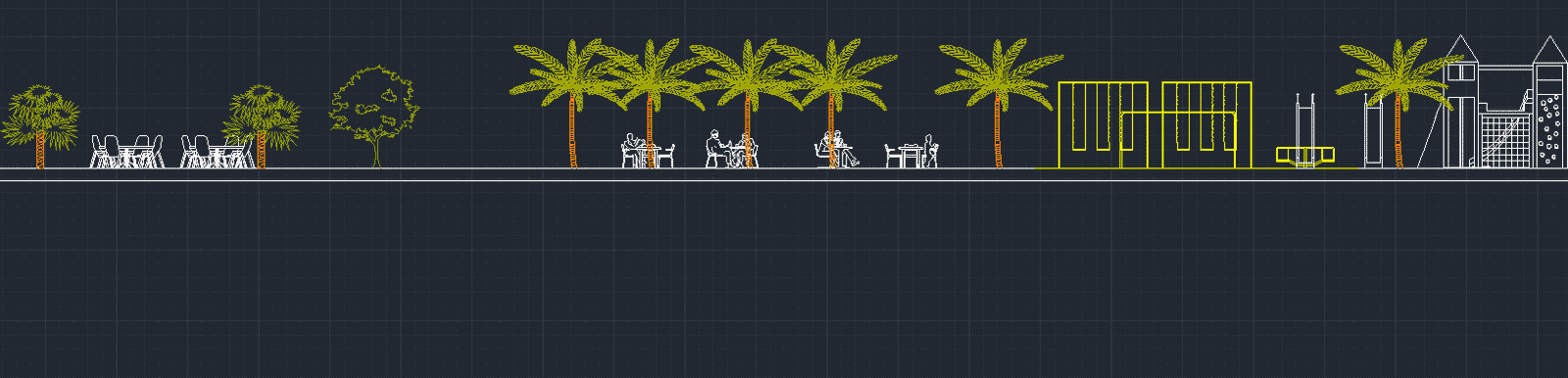

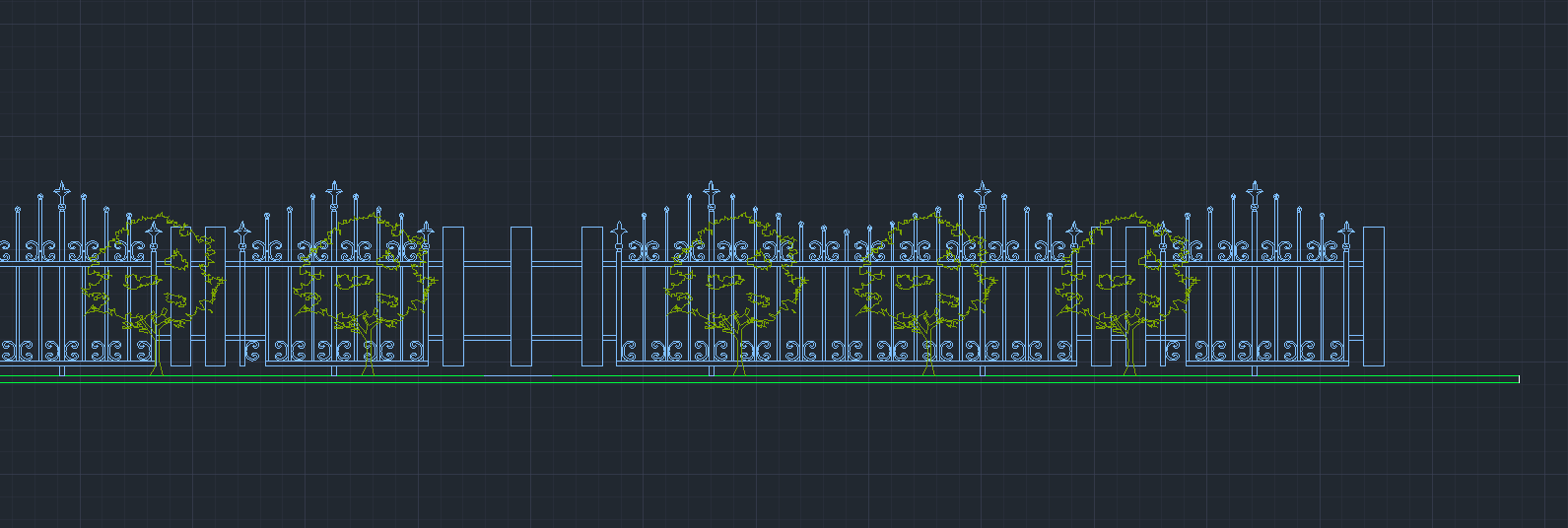

Public Realm Elevation Details

The public realm is represented through linear elevation strips showing a fountain, seating, landscape features, shaded elements and pedestrian experience.

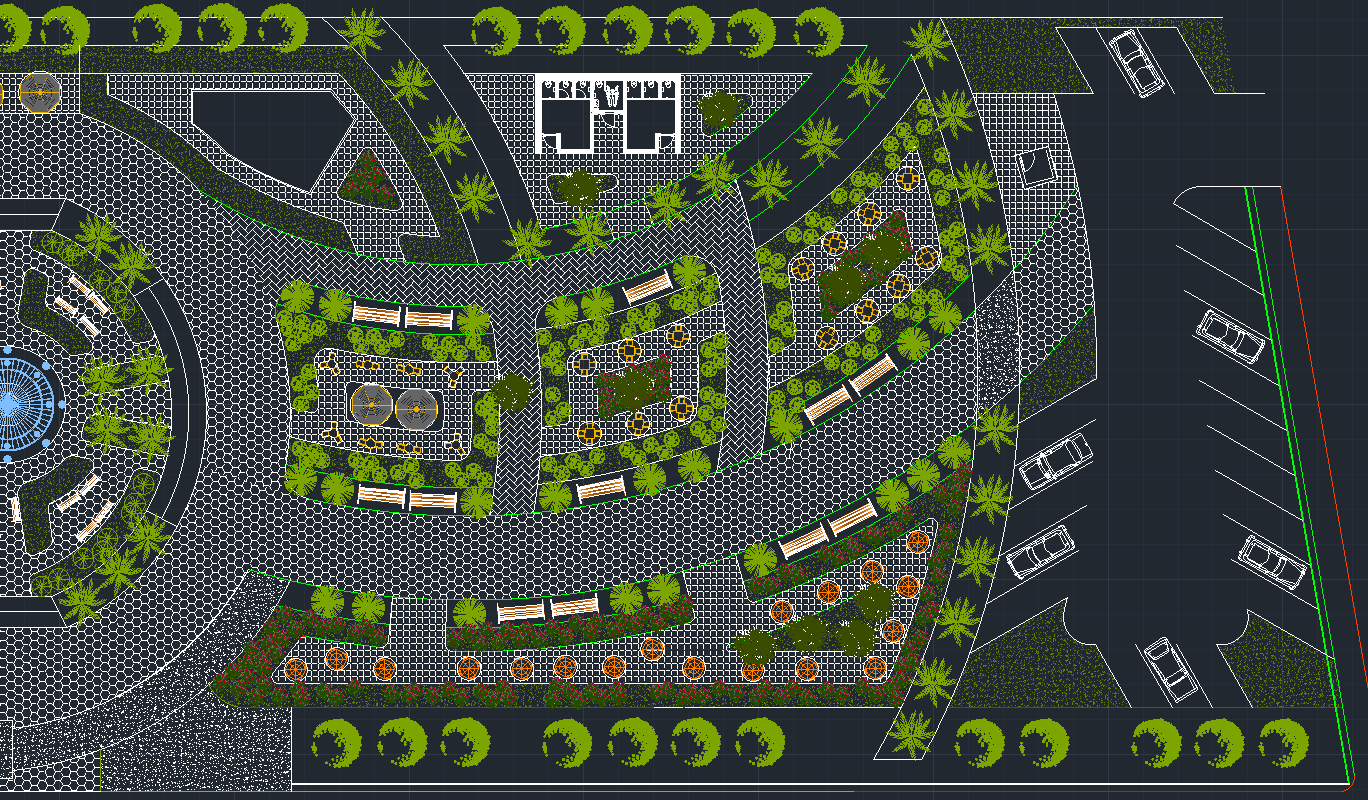

Curved master-plan zone and circulation detail.

Step 06

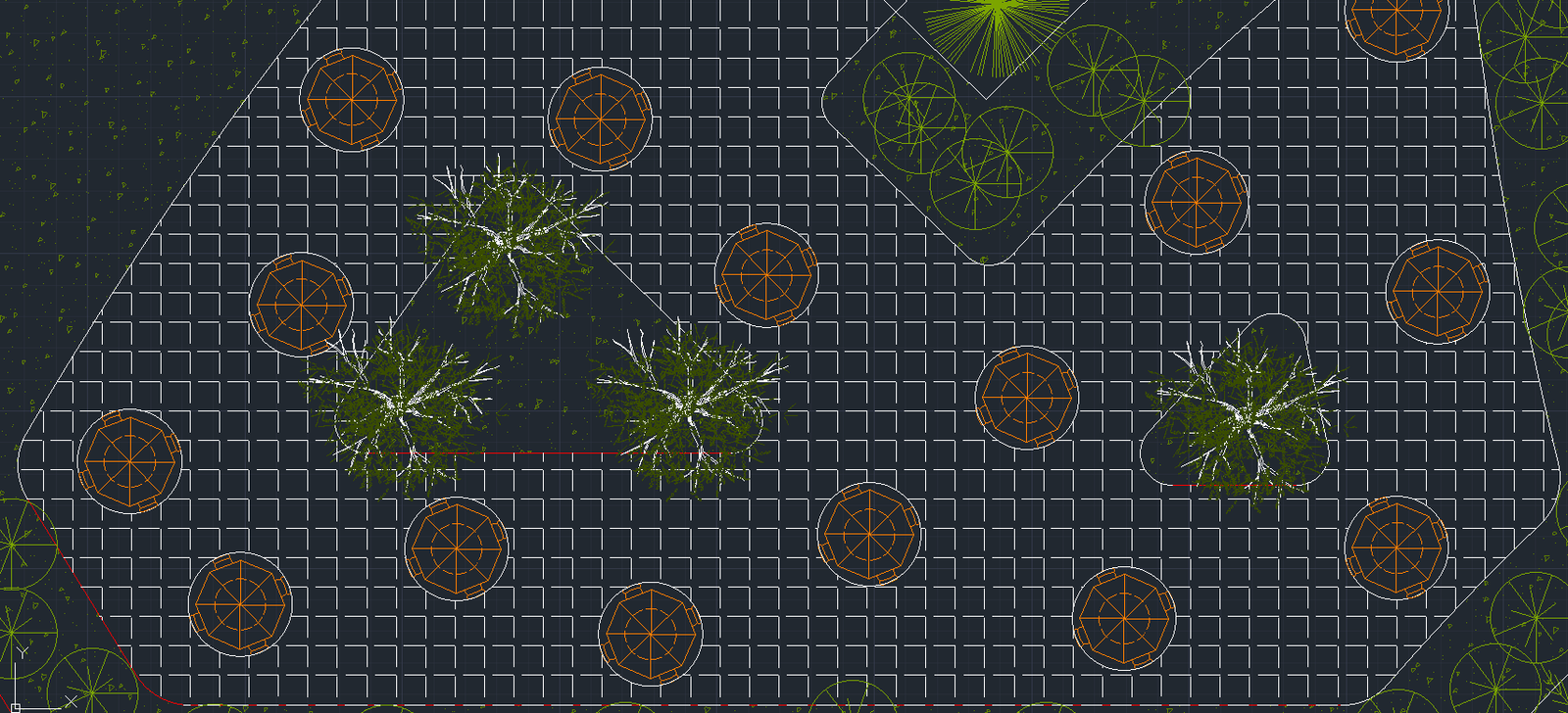

Detailed Landscape Zones

Detailed plan zones show curved circulation, planting, road edges and activity pockets that define the outdoor user experience.

Step 07

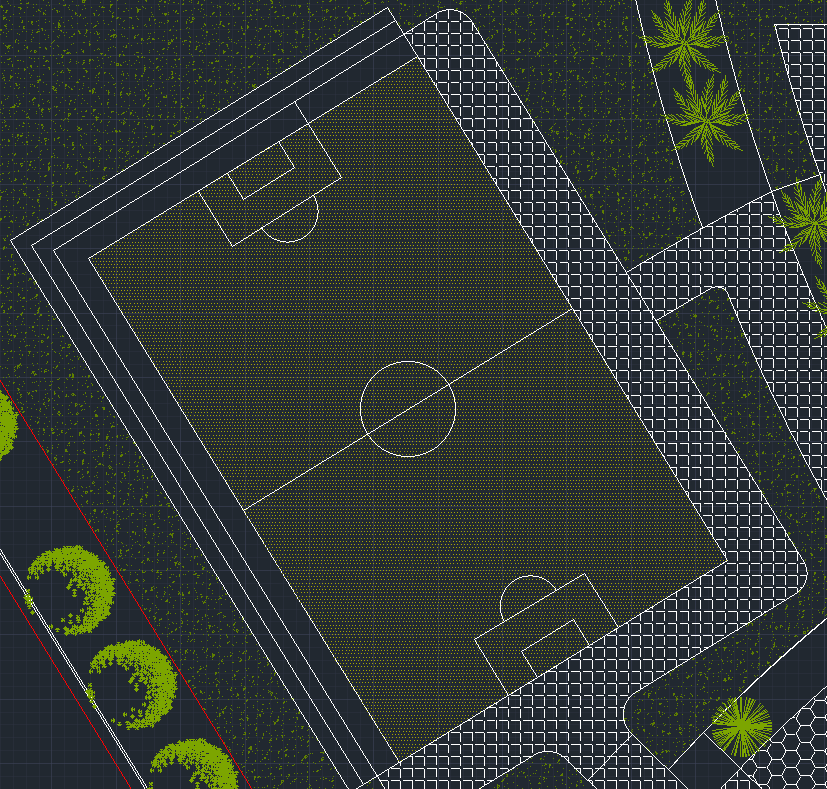

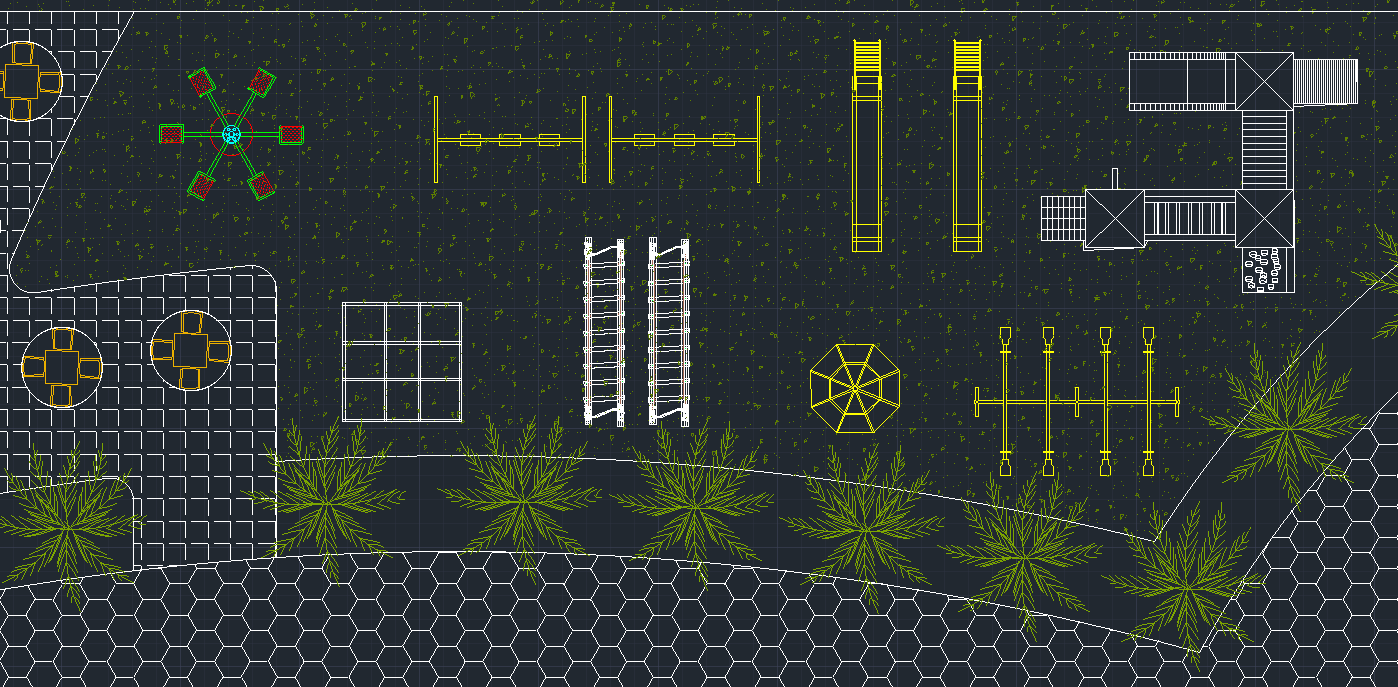

Sports and Central Activity Areas

Sports areas, plaza spaces and public activity zones are developed as coordinated AutoCAD plan views with landscape, paving and road boundaries.

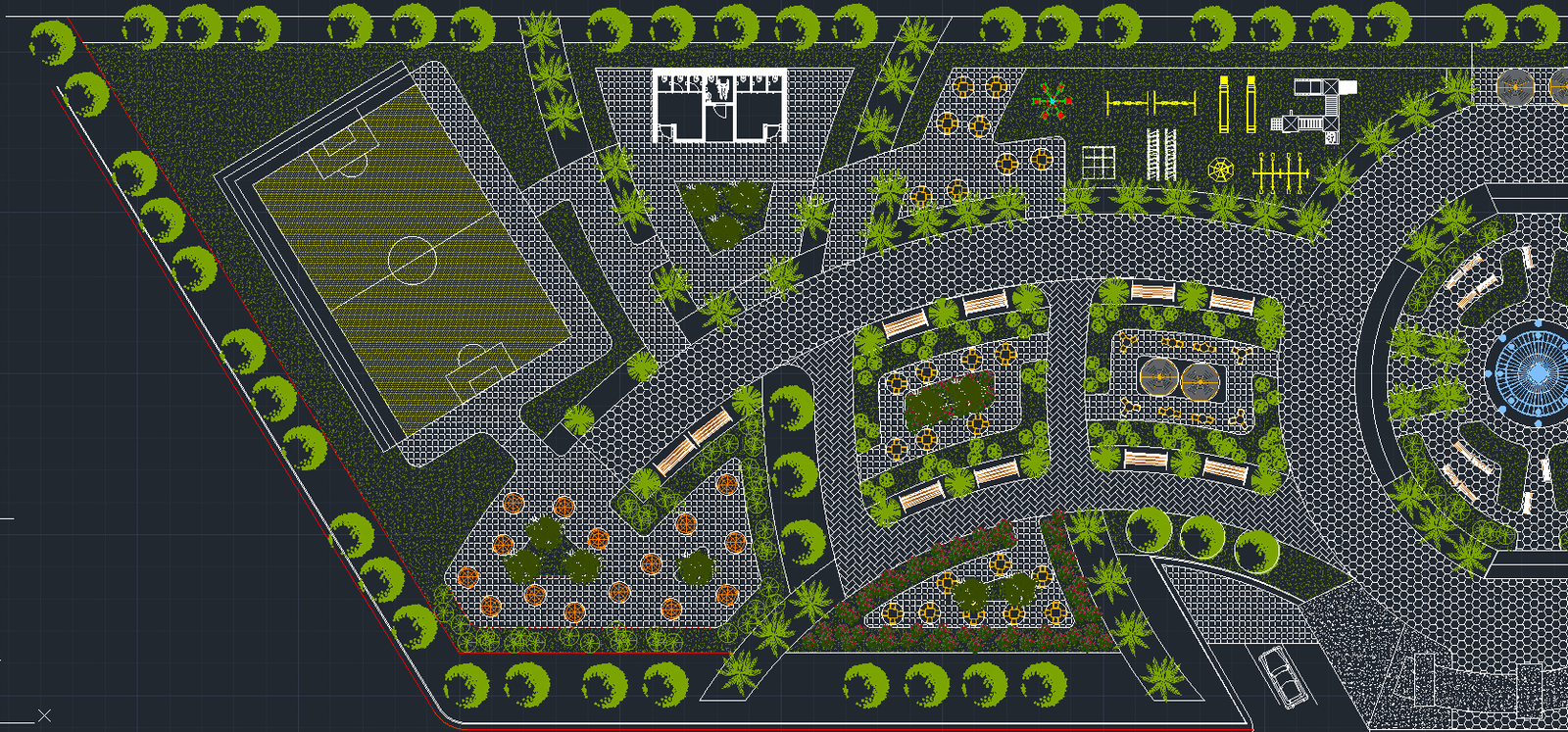

Sports and park zone master-plan detail.

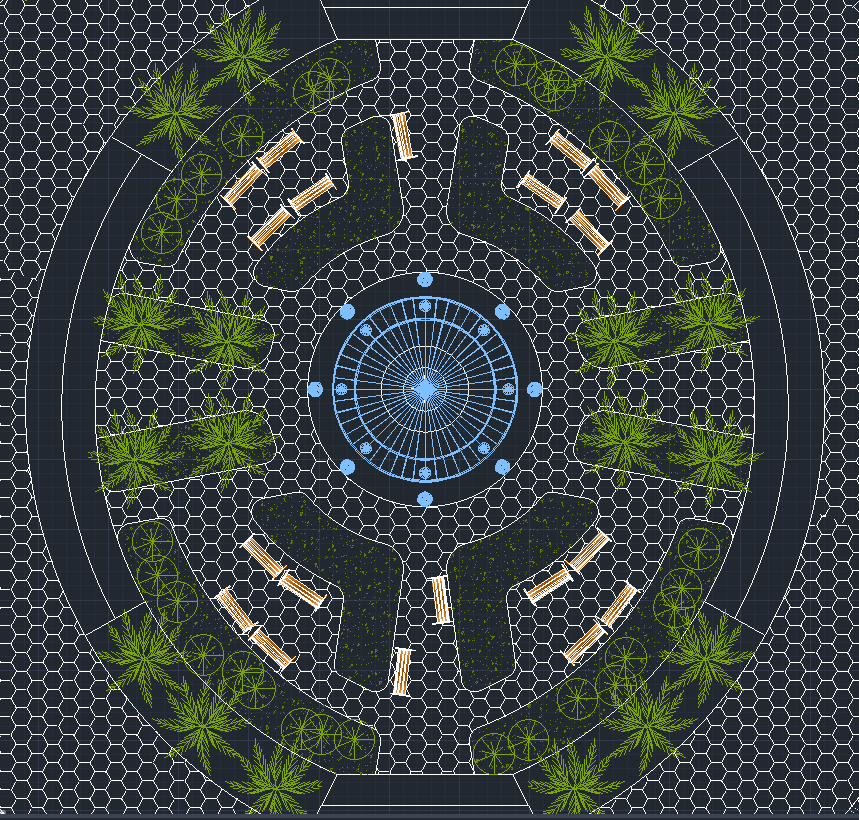

Circular central plaza landscape design.

Step 08

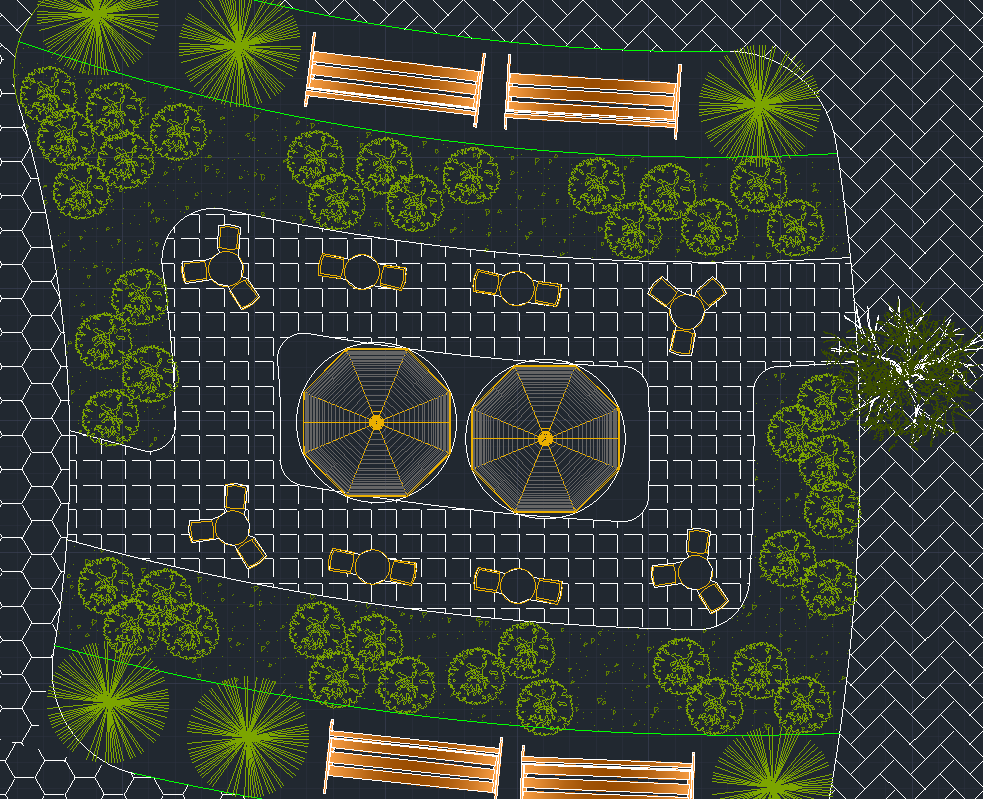

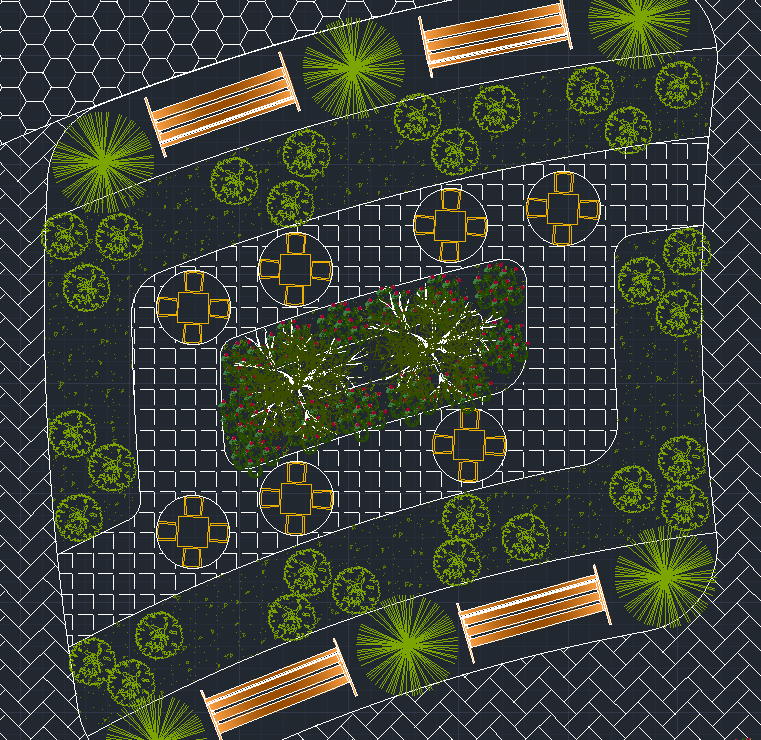

Circular Plaza and Seating Layout

The final major view presents a circular central plaza with seating, planting and radial organisation, acting as the primary gathering node of the landscape design.
